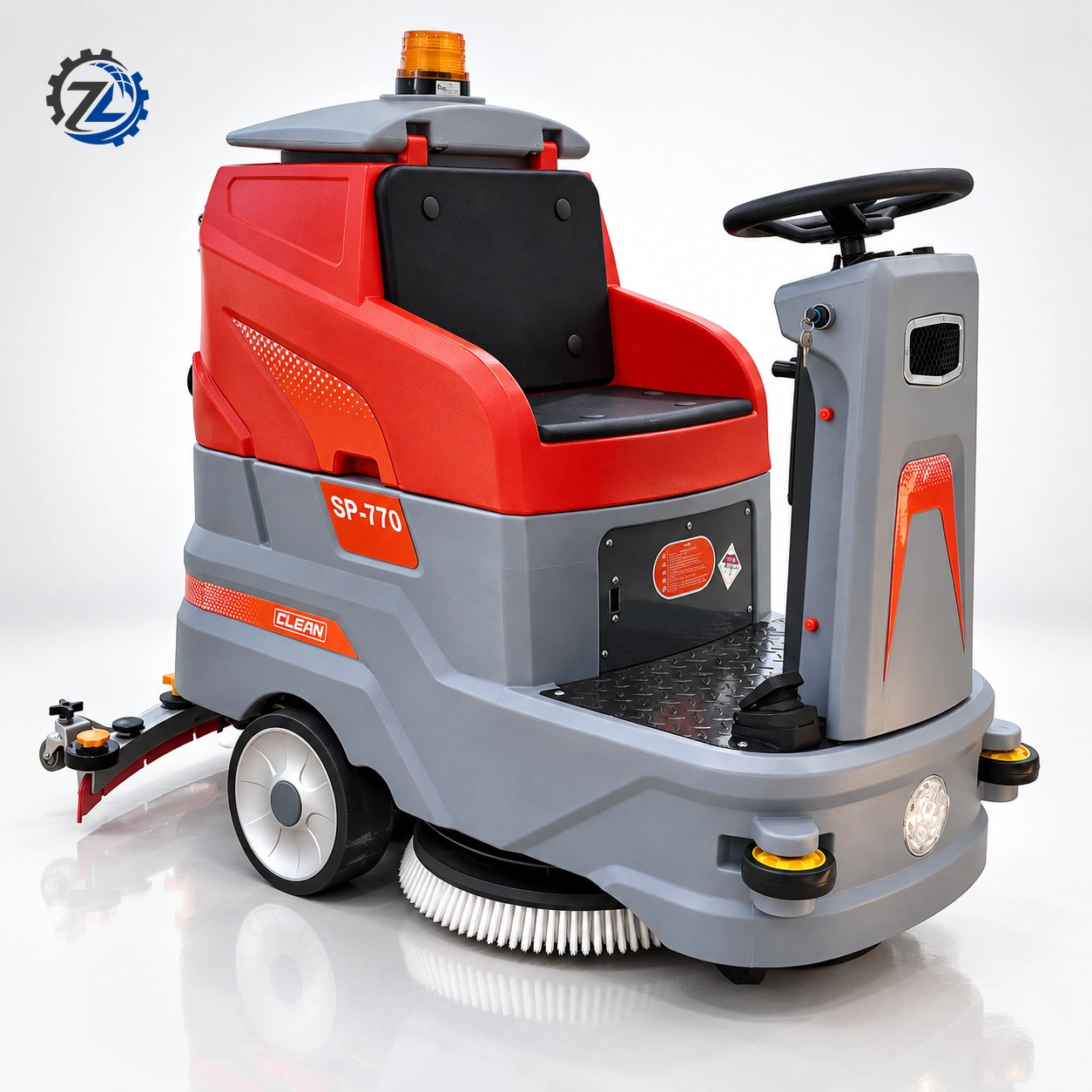

The SP770 Single-Brush Ride-On Floor Scrubber is a compact battery-powered cleaning machine designed for routine maintenance of industrial and commercial floors. Featuring a 620 mm cleaning width, a single 19-inch nylon disc brush, an 85 L solution tank and a 108 L recovery tank, it provides practical floor scrubbing and wastewater recovery for warehouses, workshops, factories and commercial facilities.
The SP770 Single-Brush Ride-On Floor Scrubber is a compact industrial cleaning machine designed for routine floor maintenance in warehouses, factories, workshops and commercial facilities.
Equipped with a 19-inch nylon disc brush, a 450 W brush motor and a 600 W vacuum motor, the machine combines mechanical floor scrubbing with wastewater recovery during daily cleaning operations.
Its 85 L solution tank, 108 L recovery tank, rear-axle drive system and mechanically operated brush and squeegee lifting mechanisms provide a practical cleaning solution for facilities requiring a compact ride-on machine.
A 19-inch nylon disc brush provides mechanical scrubbing for routine industrial and commercial floor cleaning.
The dedicated brush motor powers the single-disc cleaning system for regular floor maintenance.
The rear squeegee provides wastewater collection coverage during wet floor scrubbing.
The vacuum motor supports wastewater suction and recovery during cleaning operations.
Mechanically operated lifting mechanisms provide straightforward brush and squeegee positioning.
A standard high-pressure spray gun provides an additional washing function for cleaning and maintenance tasks.
The SP770 single-brush model is intended for routine floor cleaning in industrial and commercial environments where compact machine dimensions, mechanical scrubbing and wastewater recovery are required.
Suitable for regular scrubbing of warehouse floors, storage spaces and indoor material handling areas.
Helps maintain factory floors and production areas during routine facility cleaning.
Practical for cleaning workshop floors and maintenance areas with suitable floor conditions.
Supports scheduled floor cleaning in indoor storage buildings and distribution areas.
Suitable for cleaning indoor commercial floors and circulation areas with sufficient operating space.
Useful for routine floor maintenance in large indoor public and institutional buildings.
| Model | SP770 Single-Brush |
|---|---|
| Machine Type | Single-Brush Ride-On Floor Scrubber |
| Cleaning Width | 620 mm |
| Squeegee Width | 830 mm |
| Manufacturer-Listed Cleaning Efficiency | 5000 m²/h |
| Solution Tank Capacity | 85 L |
| Recovery Tank Capacity | 108 L |
| Working Time – Lower Battery Option | Approx. 3 Hours |
| Working Time – Higher Battery Option | Approx. 5 Hours |
| Machine Weight | 260 kg |
| Brush Motor Power | 450 W |
|---|---|
| Vacuum Motor Power | 600 W |
| Brush Quantity | 1 |
| Brush Size | 19 inches |
| Brush Material | Nylon |
| Drive System | Rear-Axle Drive |
| Brush Lifting | Mechanical |
| Squeegee Lifting | Mechanical |
| Low-Voltage Alarm | No |
| Wastewater Alarm | No |
| High-Pressure Spray Gun Power | 120 W |
| Power Source | Battery Electric |
|---|---|
| Battery Type | Tianneng Lead-Acid Battery |
| Battery Voltage | 24 V |
| Battery Configuration | Two Battery Options Available |
| Overall Length | 1450 mm |
| Overall Width | 830 mm |
| Overall Height | 1300 mm |
| Overall Dimensions (L × W × H) | 1450 × 830 × 1300 mm |
| Wheel Material | Aluminum Alloy / Polyethylene (Manufacturer-Listed) |
| Steel Body Thickness | 4 mm |
| Molded Plastic Thickness | 5 mm |
Important inspection points for the SP770 single-brush floor scrubber include machine assembly, brush motor operation, vacuum recovery performance, mechanical lifting functions, water tank sealing, electrical controls and rear-axle drive system operation.
Functional inspection before shipment helps verify the main cleaning and operating systems. Specific inspection procedures can be confirmed according to production and order requirements.
Warranty terms are provided according to the final machine configuration and order conditions.
Replacement and maintenance parts can be supplied for routine machine service and repair requirements.
Operating, maintenance and troubleshooting guidance can be provided when required.
Remote technical support can help identify common cleaning system, electrical and maintenance issues.
