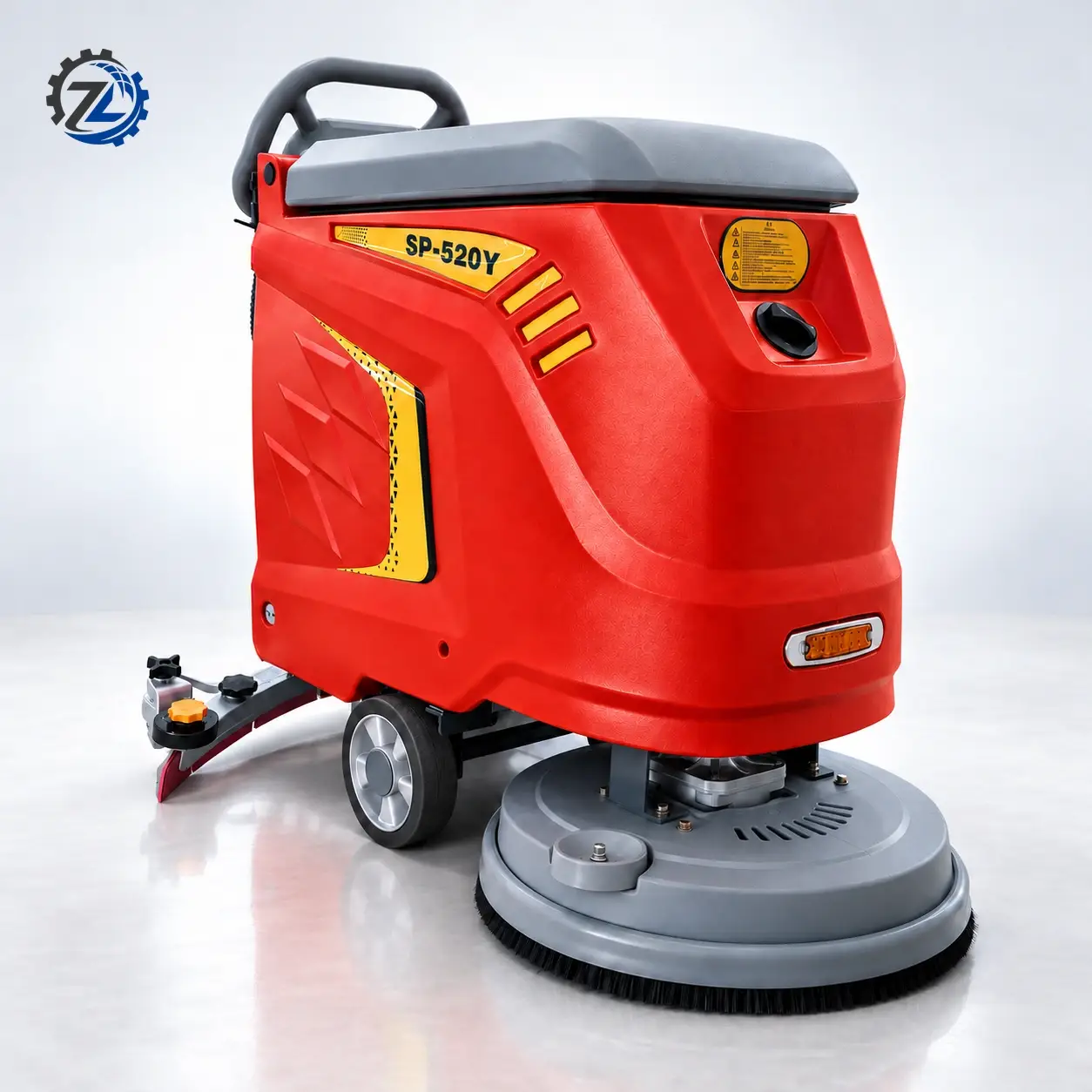

The SP520Y Walk-Behind Floor Scrubber is a compact industrial cleaning machine designed for routine floor maintenance in warehouses, workshops, factories and commercial facilities. Featuring a 520 mm cleaning width, a 19-inch nylon disc brush, a 60 L solution tank and a 65 L recovery tank, it combines mechanical floor scrubbing with wastewater recovery. Its compact design, 24V battery system and mechanically operated brush lifting make it a practical solution for daily indoor floor cleaning.
The SP520Y is a compact walk-behind floor scrubber designed for routine cleaning and maintenance of indoor industrial and commercial floors.
Equipped with a single 19-inch nylon disc brush, a 550 W brush motor and a 600 W vacuum motor, the machine combines mechanical floor scrubbing with wastewater recovery during daily cleaning operations.
Its 60 L solution tank, 65 L recovery tank, compact machine dimensions and mechanically operated brush lifting system make the SP520Y suitable for warehouses, workshops, manufacturing facilities and commercial buildings. A 24V lead-acid battery system supports cordless cleaning operation, while an optional high-pressure spray gun is available for additional washing requirements.
A nylon disc brush provides mechanical scrubbing for routine industrial and commercial floor cleaning.
The dedicated brush motor powers the single-disc cleaning system for daily floor maintenance.
Wide rear squeegee coverage supports wastewater collection during wet floor cleaning.
The vacuum motor provides suction for wastewater recovery during floor scrubbing operations.
Manufacturer-listed brush pressure specification for the floor scrubbing system.
Manufacturer-listed low-noise operation suitable for various indoor floor cleaning applications.
The SP520Y is designed for routine floor cleaning in indoor industrial and commercial environments where compact equipment, mechanical scrubbing and wastewater recovery are required.
Suitable for routine scrubbing of warehouse floors, storage spaces and indoor material handling areas.
Helps maintain clean workshop floors and production areas during regular facility maintenance.
Practical for routine floor cleaning in commercial buildings, corridors and indoor circulation areas.
Supports scheduled wet floor cleaning in retail stores and other commercial spaces.
Useful for routine floor maintenance in storage buildings and indoor distribution areas.
Suitable for regular cleaning of indoor floors in educational, administrative and institutional buildings.
| Model | SP520Y |
|---|---|
| Machine Type | Walk-Behind Floor Scrubber |
| Cleaning Width | 520 mm |
| Squeegee Width | 830 mm |
| Manufacturer-Listed Cleaning Efficiency | 2500 m²/h |
| Solution Tank Capacity | 60 L |
| Recovery Tank Capacity | 65 L |
| Working Time | Approx. 3.5–5 Hours |
| Noise Level | ≤55 dB (Manufacturer-Listed) |
| Machine Weight | 200 kg |
| Brush Motor Power | 550 W |
|---|---|
| Vacuum Motor Power | 600 W |
| Brush Quantity | 1 |
| Brush Size | 19 inches |
| Brush Material | Nylon |
| Brush Pressure | 50 kg (Manufacturer-Listed) |
| Brush Lifting | Mechanical |
| Low-Voltage Alarm | Yes |
| Wastewater Alarm | Yes |
| Optional High-Pressure Spray Gun Power | 150 W |
| Power Source | Battery Electric |
|---|---|
| Battery Type | Tianneng Lead-Acid Battery |
| Battery Voltage | 24 V |
| Battery Capacity | To Be Confirmed |
| Overall Length | 1200 mm |
| Overall Width | 830 mm |
| Overall Height | 1200 mm |
| Overall Dimensions (L × W × H) | 1200 × 830 × 1200 mm |
| Wheel Material | Aluminum Alloy / Polyethylene (Manufacturer-Listed) |
| Steel Body Thickness | 4 mm |
| Molded Plastic Thickness | 5 mm |
Important inspection points for the SP520Y include machine assembly, brush motor operation, vacuum recovery performance, mechanical lifting functions, water tank sealing, battery connections and electrical control functions.
Functional inspection before shipment helps verify the main floor scrubbing and wastewater recovery systems. Specific inspection procedures should be confirmed according to production and order requirements.
Warranty terms are provided according to the final machine configuration and order conditions.
Replacement and maintenance parts can be supplied for routine machine service and repair requirements.
Operating, maintenance and troubleshooting guidance can be provided when required.
Remote technical support can help identify common cleaning system, electrical and maintenance issues.
