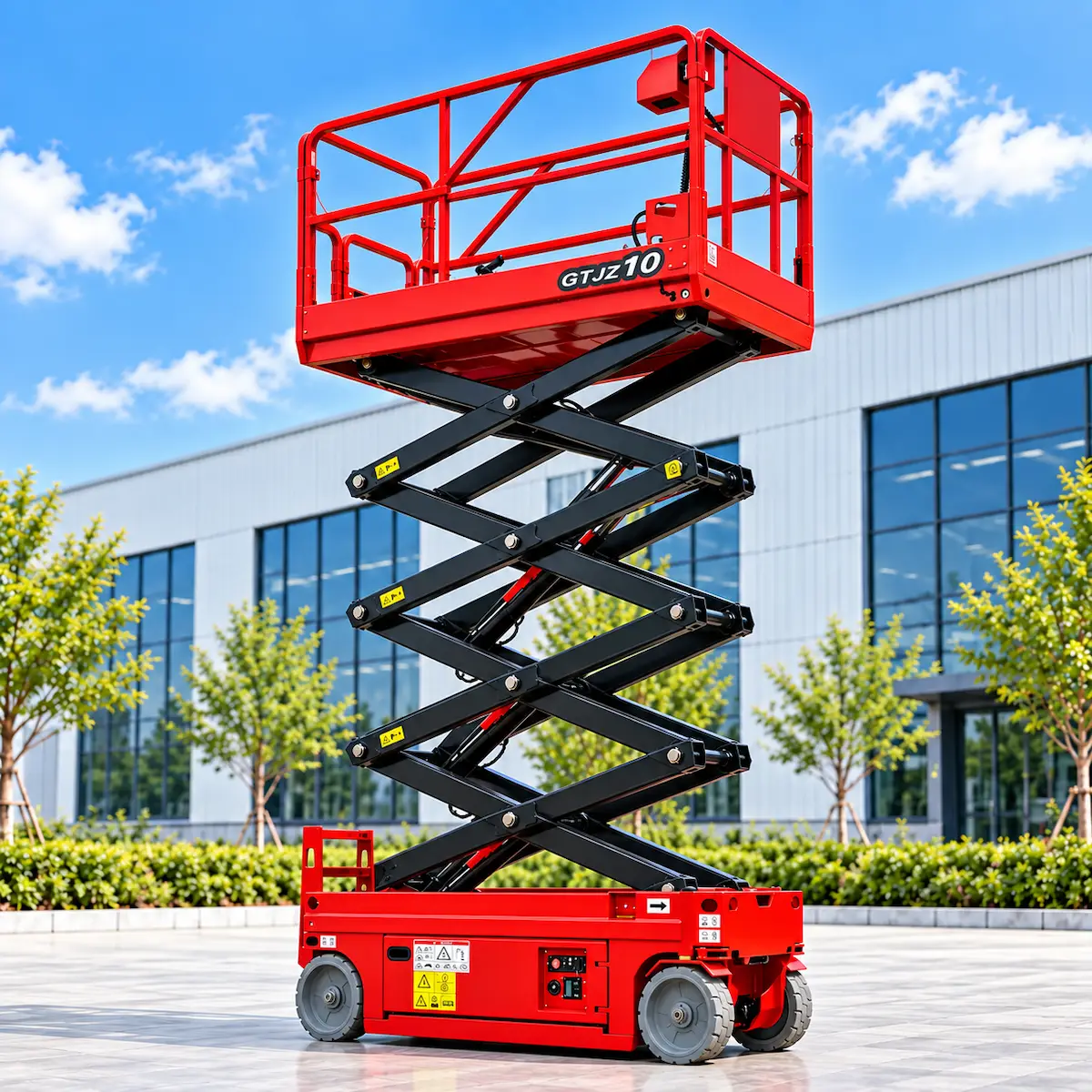

The GTJZ-10 Self-Propelled Scissor Lift is a battery-powered aerial work platform designed for elevated maintenance, installation, inspection and facility service applications. With an 11.8 m maximum working height, 320 kg rated platform capacity and a 0.9 m extension platform, it provides practical access for industrial, commercial and construction work.
The GTJZ-10 Self-Propelled Scissor Lift is a battery-powered aerial work platform designed for elevated maintenance, installation, inspection and facility service applications.

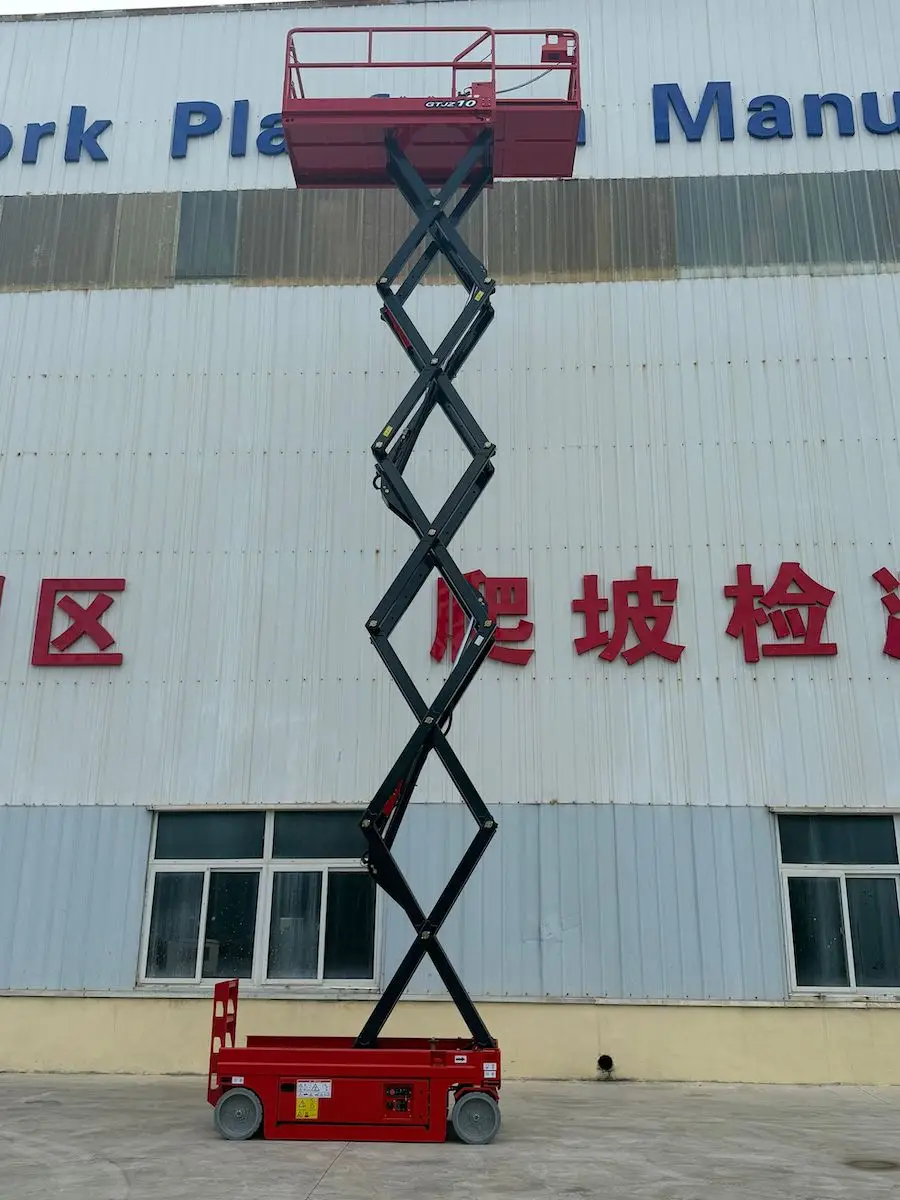

With an 11.8 m maximum working height and 9.8 m maximum platform height, the GTJZ-10 provides practical vertical access for industrial, commercial and construction environments.

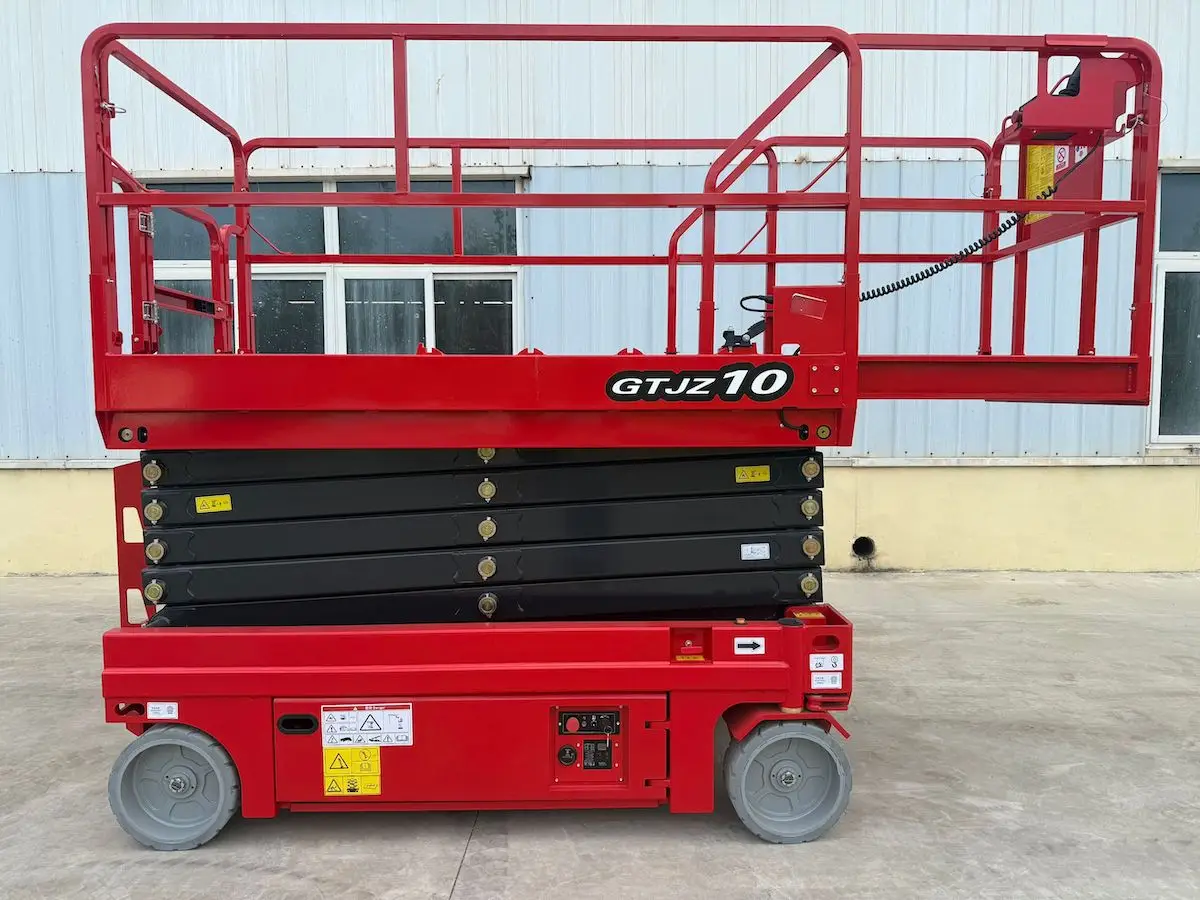

Its self-propelled drive system, zero inside turning radius, folding guardrails and 0.9 m extension platform support efficient positioning and operation in a wide range of working areas.
The platform controller supports forward travel, reverse travel, steering and lifting functions during routine operation.
Zero inside turning radius supports maneuverability in factories, warehouses and other restricted working areas.

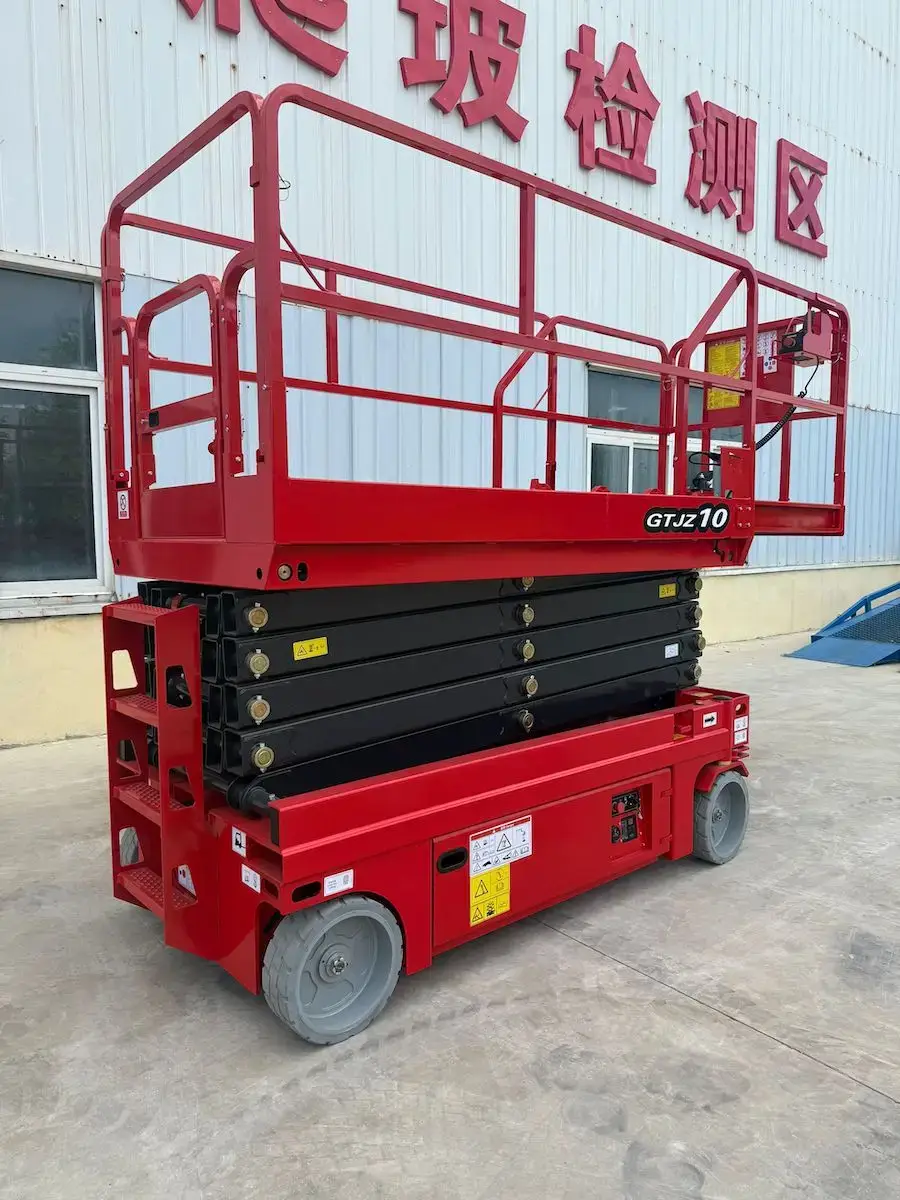

Folding guardrails reduce overall machine height for storage, transportation and lower-clearance access.
Powered travel allows efficient repositioning between nearby working locations.
Reduced travel speed while elevated provides controlled repositioning during aerial operation.
Provides practical travel capability on suitable ramps and working surfaces within rated operating conditions.
The GTJZ-10 is suitable for elevated work where operators require stable vertical access, powered travel and a practical working platform.
Suitable for equipment inspection, overhead maintenance and routine industrial facility service.
Provides elevated access for lighting, shelving, electrical and building maintenance work.
Can assist with lighting systems, cable installation and other elevated electrical work.
Suitable for inspection and maintenance of ventilation, air-conditioning and ceiling-mounted equipment.
Provides vertical access for finishing, installation, inspection and light construction applications.
Suitable for routine elevated cleaning, maintenance and installation work within rated operating conditions.
| Model | GTJZ-10 |
|---|---|
| Max. Working Height | 11.8 m |
| Max. Platform Height | 9.8 m |
| Rated Platform Capacity | 320 kg |
| Extension Platform Capacity | 100 kg |
| Extension Platform Length | 0.9 m |
| Gradeability | 25% |
| Max. Working Slope | 1.5° / 3° |
| Platform Size (L × W × H) | 2.26 × 1.14 × 1.10 m |
|---|---|
| Overall Size – Guardrails Unfolded | 2.41 × 1.16 × 2.43 m |
| Overall Size – Guardrails Folded | 2.41 × 1.16 × 1.75 m |
| Wheelbase | 1.87 m |
| Turning Radius (Inside / Outside) | 0 / 2.35 m |
| Minimum Ground Clearance | 0.10 / 0.02 m |
| Tire Size | Φ381 × 127 mm |
| Machine Weight | 2600 kg |
| Lift / Drive Motor | 24 V / 4.5 kW |
|---|---|
| Lifting Speed | 3–5 m/min |
| Travel Speed – Stowed | 3.5 km/h |
| Travel Speed – Elevated | 0.8 km/h |
| Battery | 4 × 6 V / 200 Ah |
| Charger | 24 V / 30 A |
| Drive Configuration | 4 × 2 |
The GTJZ-10 is equipped with multiple protection, emergency and operating systems designed to support routine lifting and travel applications.
The GTJZ-10 uses Q355 manganese-steel structural members in the lifting system, combined with a welded steel chassis for stable machine support.
The working platform uses a 3 mm anti-slip patterned steel plate, while the safety guardrail uses 35 × 35 mm square tubing. Main structural members include 120 × 80 × 4 mm sections according to the machine configuration.
Maintenance supports, lower controls, solid tires and the electric-hydraulic lifting system are integrated into the machine for routine operation, inspection and service access.
The maintenance-free battery system provides electric power for travel and lifting functions, with accessible compartment layout for routine inspection and charging.
The hydraulic power unit integrates the motor, pump and related hydraulic components required for controlled lifting operation.
Warranty terms are provided according to the final machine configuration and order conditions.
Replacement and maintenance parts can be supplied for routine servicing and repair requirements.
Operating, charging, maintenance and troubleshooting guidance can be provided when required.
Remote technical support can assist with common electrical, hydraulic and operating issues.
