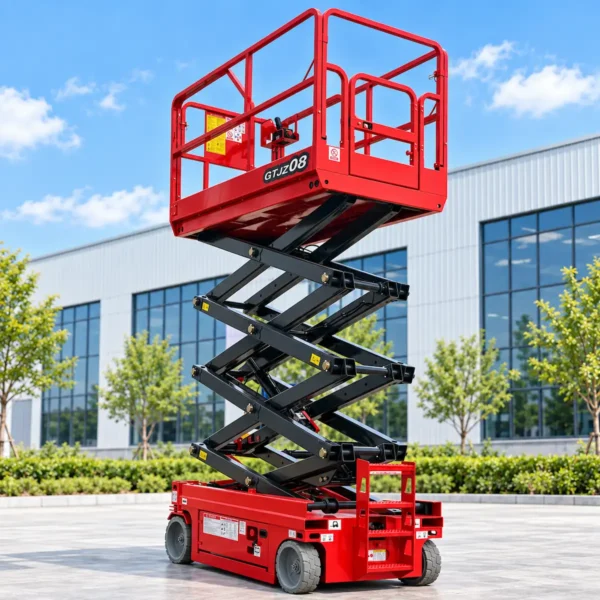

The GTJZ-08 Self-Propelled Scissor Lift is a battery-powered aerial work platform with a 10 m maximum working height and 8 m maximum platform height. With a 450 kg rated platform capacity, 0.9 m extension deck and self-propelled travel, it is designed for elevated cleaning, installation, inspection and maintenance work.
The GTJZ-08 Self-Propelled Scissor Lift is a battery-powered aerial work platform designed for elevated cleaning, installation, inspection and maintenance applications.
Its self-propelled travel system allows operators to drive, steer and reposition the machine directly during normal operation, while the extendable platform provides additional access beyond the main deck.
Folding guardrails, solid tires, a compact turning radius and multiple operating safety systems make the GTJZ-08 suitable for indoor and outdoor aerial work where mobility and vertical access are required.
The platform controller supports forward travel, reverse travel, steering and lifting functions.
Compact steering geometry supports maneuvering in restricted industrial and commercial working areas.

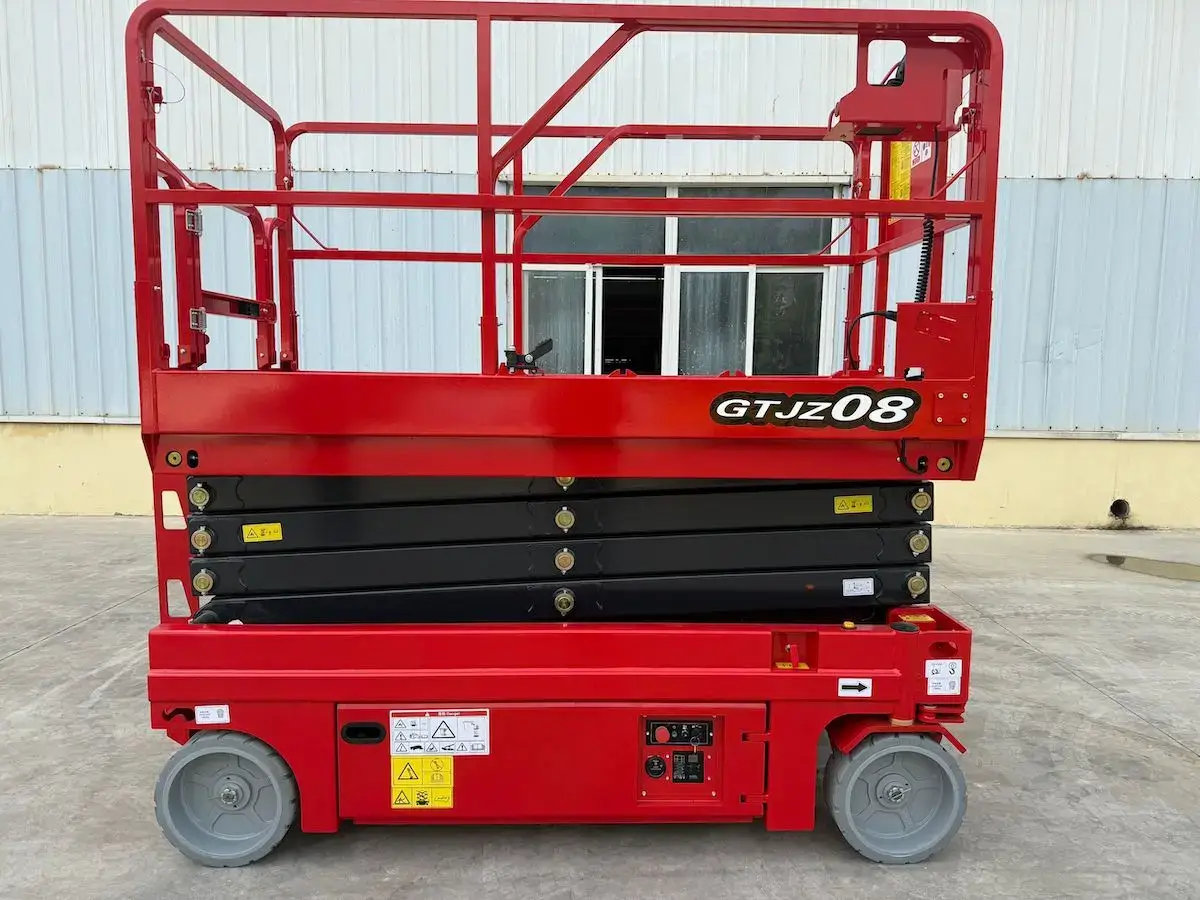

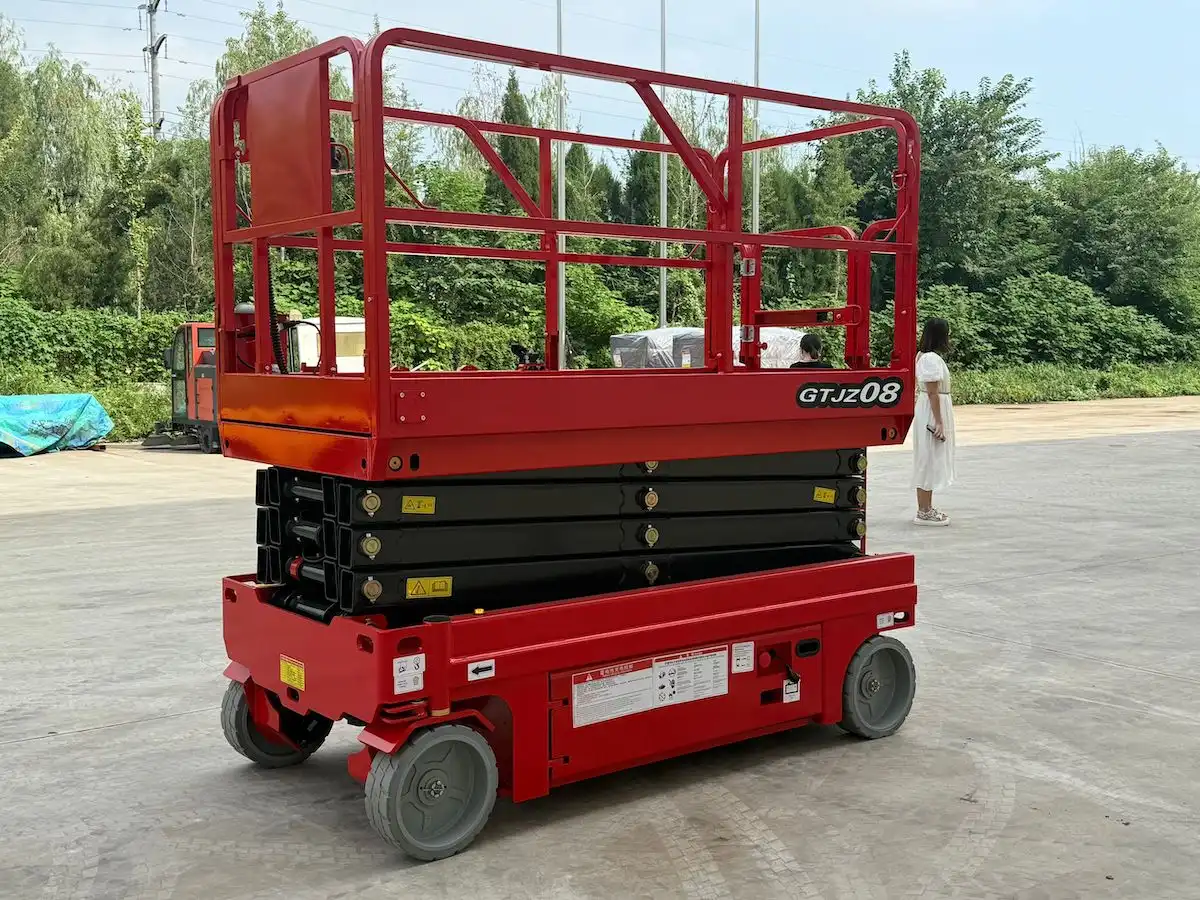

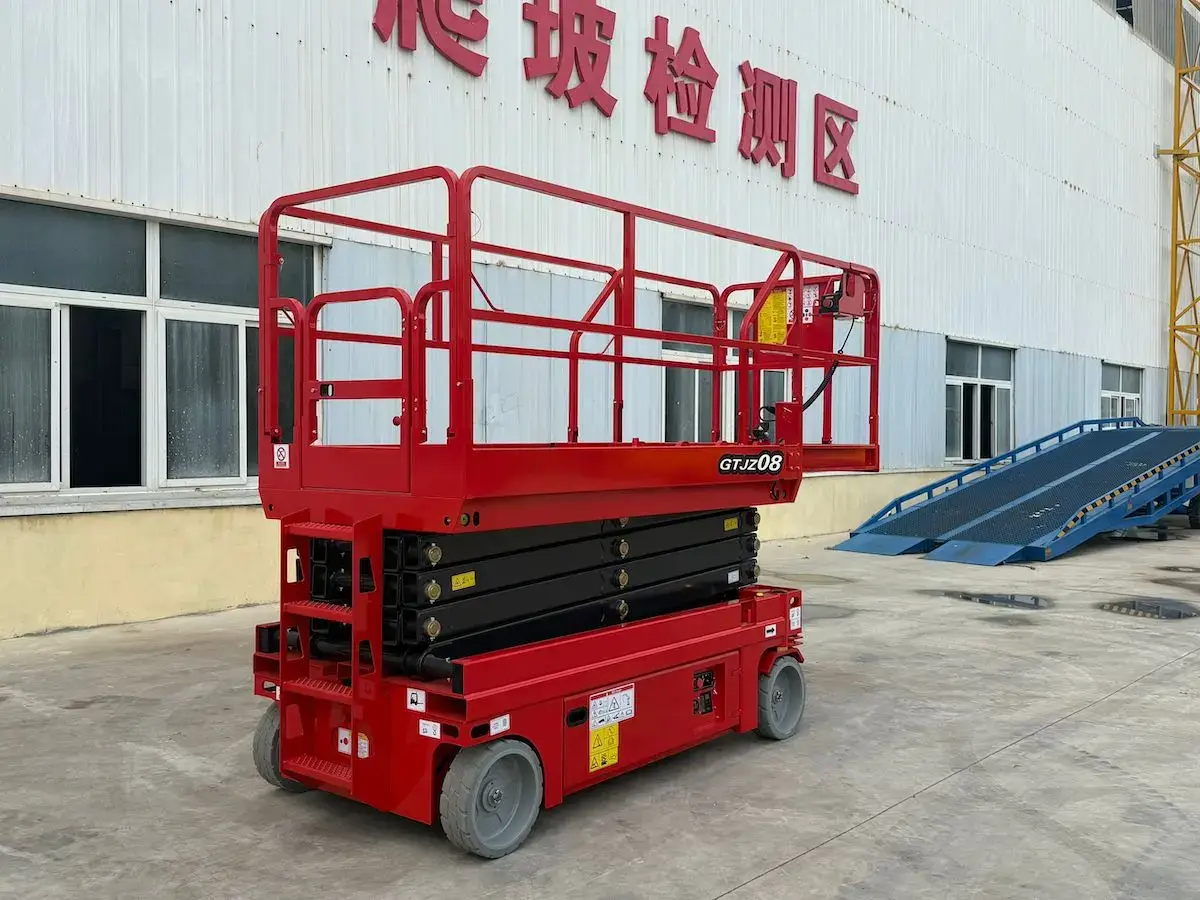

Folding guardrails reduce the overall machine height for transport, storage and lower-clearance access.
Powered travel allows the machine to move efficiently between nearby working positions.
Reduced travel speed while elevated provides controlled repositioning during aerial work.
Provides practical travel capability on suitable ramps and working surfaces within rated conditions.
The GTJZ-08 Self-Propelled Scissor Lift is suitable for elevated work where operators need stable vertical access, powered travel and a practical working platform.
Suitable for cleaning ceilings, curtain walls, glass windows, eaves and other elevated building areas.
Provides elevated access for routine inspection and maintenance work in industrial and commercial facilities.
Can assist with installation, inspection and servicing of elevated lighting equipment.
Suitable for installation and maintenance of billboards, signs and other elevated fixtures.
Provides vertical access for maintenance of street lamps and traffic-related equipment.
Suitable for routine elevated installation and service tasks within the machine’s rated working conditions.
| Model | GTJZ-08 |
|---|---|
| Max. Working Height | 10 m |
| Max. Platform Height | 8 m |
| Rated Platform Capacity | 450 kg |
| Extension Platform Capacity | 100 kg |
| Extension Platform Length | 0.9 m |
| Gradeability | 25% |
| Max. Working Slope | 1.5° / 3° |
| Platform Size (L × W × H) | 2.26 × 1.14 × 1.10 m |
|---|---|
| Overall Size – Guardrails Unfolded | 2.41 × 1.16 × 2.30 m |
| Overall Size – Guardrails Folded | 2.41 × 1.16 × 1.63 m |
| Wheelbase | 1.87 m |
| Turning Radius (Inside / Outside) | 0 / 2.35 m |
| Minimum Ground Clearance | 0.10 / 0.02 m |
| Tire Size | Φ381 × 127 mm |
| Machine Weight | 2400 kg |
| Lift / Drive Motor | 24 V / 4.5 kW |
|---|---|
| Lifting Speed | 3–5 m/min |
| Travel Speed – Stowed | 3.5 km/h |
| Travel Speed – Elevated | 0.8 km/h |
| Battery | 4 × 6 V / 200 Ah |
| Charger | 24 V / 30 A |
| Drive Configuration | 4 × 2 |
The GTJZ-08 is equipped with multiple protection, emergency and operating systems for routine lifting and travel applications.
The GTJZ-08 Self-Propelled Scissor Lift uses Q355 manganese-steel scissor arms and a welded steel chassis to form the main lifting and supporting structure.
The working platform uses a 3 mm anti-slip patterned steel plate, while the safety guardrail uses 35 × 35 mm square tubing.
Maintenance support, a lower control panel, solid tires and an electric-hydraulic lifting system are integrated into the machine for routine operation and service access.
The battery compartment provides organized access to the electric power system for routine inspection, charging and maintenance.
The hydraulic power unit integrates the motor, pump and related hydraulic components required for lifting operation.
Warranty terms are provided according to the final machine configuration and order conditions.
Replacement and maintenance parts can be supplied for routine servicing and repair requirements.
Operating, charging, maintenance and troubleshooting guidance can be provided when required.
Remote technical support can assist with common electrical, hydraulic and operating issues.
