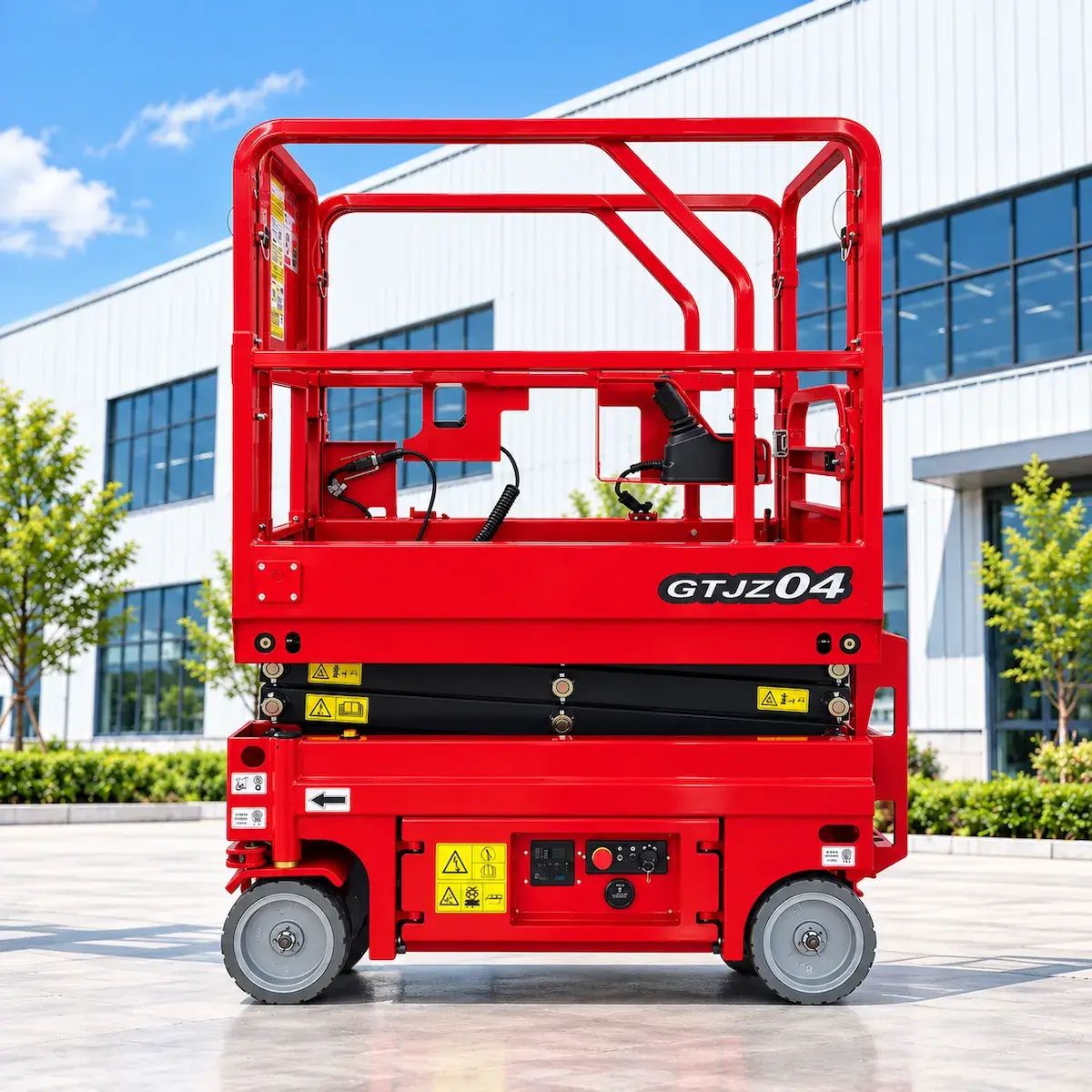

The GTJZ-04 Self-Propelled Scissor Lift is a compact battery-powered aerial work platform designed for indoor maintenance, installation, inspection and light industrial applications. With a 5.8 m maximum working height, 230 kg rated platform capacity and a 0.6 m extension platform, it provides practical elevated access in confined working areas.
The GTJZ-04 Self-Propelled Scissor Lift is a compact battery-powered aerial work platform developed for maintenance, installation, inspection and other elevated work in confined areas.
With a 5.8 m maximum working height and 3.9 m maximum platform height, the GTJZ-04 provides practical vertical access for factories, warehouses, workshops and commercial facilities.
Its compact 0 m inside turning radius, folding guardrails, self-propelled travel system and 0.6 m extension platform help improve maneuverability and working access where space is limited.
The platform controller supports forward travel, reverse travel, steering and lifting functions during routine operation.
Zero inside turning radius supports maneuverability in narrow aisles, workshops and other restricted working areas.
Folding guardrails reduce overall machine height for storage, transportation and lower-clearance access.
Powered travel allows efficient repositioning between nearby working locations.
Reduced travel speed while elevated provides controlled repositioning during aerial operation.
Provides practical travel capability on suitable ramps and working surfaces within rated operating conditions.
The GTJZ-04 is designed for compact elevated work where maneuverability, electric operation and easy positioning are important.
Suitable for routine equipment inspection, overhead servicing and light industrial maintenance work.
Provides compact elevated access for lighting, shelving and facility service work.
Can assist with lighting systems, cables and other elevated electrical installation tasks.
Compact dimensions support operation in workshops, commercial buildings and other indoor areas.
Suitable for signs, fixtures, equipment and other light elevated installation applications.
Suitable for routine elevated cleaning, inspection and maintenance within rated operating conditions.
| Model | GTJZ-04 |
|---|---|
| Max. Working Height | 5.8 m |
| Max. Platform Height | 3.9 m |
| Rated Platform Capacity | 230 kg |
| Extension Platform Capacity | 100 kg |
| Extension Platform Length | 0.6 m |
| Gradeability | 25% |
| Max. Working Slope | 1.5° / 3° |
| Platform Size (L × W × H) | 1.35 × 0.75 × 1.05 m |
|---|---|
| Overall Size – Guardrails Unfolded | 1.51 × 0.76 × 1.91 m |
| Overall Size – Guardrails Folded | 1.51 × 0.76 × 1.50 m |
| Wheelbase | 1.09 m |
| Turning Radius (Inside / Outside) | 0 / 1.9 m |
| Minimum Ground Clearance | 0.08 / 0.02 m |
| Tire Size | Φ255 × 76 mm |
| Machine Weight | 950 kg |
| Lift / Drive Motor | 24 V / 2.5 kW |
|---|---|
| Lifting Speed | 3–5 m/min |
| Travel Speed – Stowed | 3.5 km/h |
| Travel Speed – Elevated | 0.8 km/h |
| Battery | 2 × 12 V / 80 Ah |
| Charger | 24 V / 25 A |
| Drive Configuration | 4 × 2 |
The GTJZ-04 includes multiple operating, emergency and protection systems designed to support routine travel and lifting applications.
The GTJZ-04 uses Q355 manganese-steel scissor members combined with a welded steel chassis to provide structural support for routine lifting and travel operation.
The working platform uses a 3 mm anti-slip patterned steel plate, while the safety guardrail uses 30 × 30 mm square tubing. Main scissor structural members use 80 × 60 × 4 mm Q355B rectangular tubing.
Maintenance-free batteries, solid non-marking tires, a compact electric-hydraulic power system and maintenance support components are integrated into the machine for routine operation and servicing.
The GTJZ-04 uses a maintenance-free 2 × 12 V / 80 Ah battery system, with accessible electrical components and wiring for routine inspection, charging and service.
The compact hydraulic power unit integrates the electric motor, hydraulic pump, oil reservoir, valve block and related hydraulic components required for controlled lifting operation.
Warranty terms are provided according to the final machine configuration and order conditions.
Replacement and maintenance parts can be supplied for routine servicing and repair requirements.
Operating, charging, maintenance and troubleshooting guidance can be provided when required.
Remote technical support can assist with common electrical, hydraulic and operating issues.
