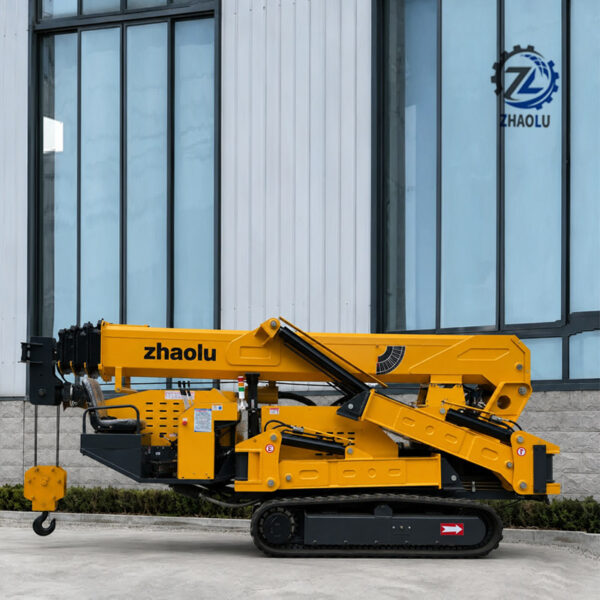

The 5 Ton Spider Crane is a crawler-mounted lifting machine designed for construction, steel structure erection, equipment installation, glass handling and other lifting applications where both working reach and job-site mobility are important. It provides a maximum working radius of 15 m and a maximum lifting height of 17 m. With an overall width of approximately 1500 mm, a five-section telescopic boom, hydraulic crawler travel system and extendable outriggers, the crane provides a larger working envelope for demanding lifting projects while maintaining crawler-based mobility. It is suitable for construction sites, industrial installation, curtain wall work and other lifting applications requiring extended height and reach.
The 5 Ton Spider Crane is a crawler-mounted lifting machine designed for construction, industrial installation, steel structure erection, glass installation and other demanding lifting applications.
The crane provides a maximum working radius of 15 m and a maximum lifting height of 17 m. With overall dimensions of approximately 4700 × 1500 × 2250 mm, it provides a larger working envelope while maintaining a crawler-based machine structure for job-site positioning.
A 5-section telescopic boom, continuous 360° rotation, hydraulic crawler travel and extendable outriggers provide flexible positioning for different lifting conditions.
The crane uses a 5-section telescopic boom extending from approximately 4.5 m to 17 m, providing extended vertical and horizontal reach for construction and installation work.
The boom angle can be adjusted from 0° to 78°, while continuous 360° rotation allows flexible load positioning around the machine.
The hydraulic crawler system provides high- and low-speed travel modes, with a maximum travel speed of 2.5 km/h and gradeability of up to 25° (36%).
Overall machine dimensions are approximately 4700 × 1500 × 2250 mm, with a self weight of approximately 6.7 tons.
The 1500 mm overall width provides a relatively compact crawler-mounted footprint for lifting applications requiring greater working height and radius.
Extendable outriggers increase the support footprint during lifting. Maximum listed outrigger extension is approximately 5800 mm longitudinal, 4900 mm rear and 5500 mm front.
The 5 Ton Spider Crane uses a 58 kW Yuchai diesel engine and also supports an AC 380 V electrical power supply.
Control and lifting accessories can be configured according to different working conditions, lifting applications and project requirements.
The standard power configuration uses a Yuchai diesel engine rated at 58 kW, with electric starting and a 35 L fuel tank.
Optional remote control allows the operator to control crane movements from a suitable viewing position.
Optional equipment is available to provide operating information and additional lifting flexibility for different working conditions.
Available according to machine configuration and applicable local requirements.
| Product Class | 5 Ton Spider Crane |
|---|---|
| Self Weight | 6.7 ton |
| Maximum Working Radius | 15 m |
| Maximum Lifting Height | 17 m |
| Hook Rising Speed | 12 m/min (4 ropes / two-speed) |
| Wire Rope | Ø11 mm × 60 m |
| Boom Configuration | 5-section telescopic boom |
| Boom Length | Approx. 4.5–17 m |
| Boom Extension Time | Approx. 54 sec |
| Boom Angle | 0°–78° |
| Boom Raising Time | Approx. 13 sec |
| Rotation Range | 360° continuous |
| Rotation Time | Approx. 38 sec / revolution |
| Travel System | Hydraulic crawler drive, high / low speed |
| Travel Speed | 0–2.5 km/h |
| Gradeability | 25° (36%) |
| Electrical Supply | AC 380 V |
| Engine Manufacturer | Yuchai |
| Engine Model | 490CC |
| Engine Power | 58 kW |
| Fuel | Diesel |
| Fuel Tank Capacity | 35 L |
| Battery | 24 V 45 Ah |
| Overall Dimensions | 4700 × 1500 × 2250 mm |
| Track Size | 300 mm width / 52.5 mm pitch / 90 sections |
| Maximum Outrigger Extension | Approx. 5800 mm longitudinal / 4900 mm rear / 5500 mm front |
| Control | Manual control / Optional wireless remote control |
| Optional Equipment | Torque indicator, wireless remote control, personnel basket, hydraulic flying jib, engine options and custom colors |
The combination of a 17 m lifting height, 15 m working radius, crawler chassis and extendable outriggers makes the 5 Ton Spider Crane suitable for projects requiring greater reach and lifting flexibility.
Suitable for lifting structural steel components, frames and installation materials on construction sites.
Suitable for positioning machinery and industrial components during installation and maintenance work.
Suitable for lifting and positioning glass panels and curtain-wall components.
The extended boom height and working radius support lifting operations across a broader range of construction projects.
Tell us your required load weight, lifting height, working radius and application. Our team can check whether the 5 Ton Spider Crane matches your working conditions and recommend a suitable configuration.
Send us your requirements and we’ll provide pricing, product specifications and shipping information.
