The 5-Ton Tracked Transporter is a heavy-duty crawler material carrier designed for transporting large loads across farms, forestry areas, construction sites, landscaping projects and uneven outdoor terrain. Its 5 T load capacity, four-cylinder engine, enlarged cargo box and hydraulic self-unloading system make it suitable for moving soil, aggregate, fertilizer, tools, construction materials and other suitable cargo in demanding working environments.
The 5-Ton Tracked Transporter is a heavy-duty crawler material carrier developed for moving large loads across construction, forestry, agricultural and landscaping working environments.
Its wide engineering-rubber-track undercarriage, seated operator position and enlarged cargo box provide a practical transport solution for construction sites, forestry areas, farms, mountain paths and other outdoor locations where conventional wheeled transport equipment may have limited mobility.
The machine combines a four-cylinder engine, electric starting, multi-speed transmission and hydraulic tipping cargo box to support routine transport and unloading of soil, aggregate, fertilizer, tools, construction materials and other suitable cargo.

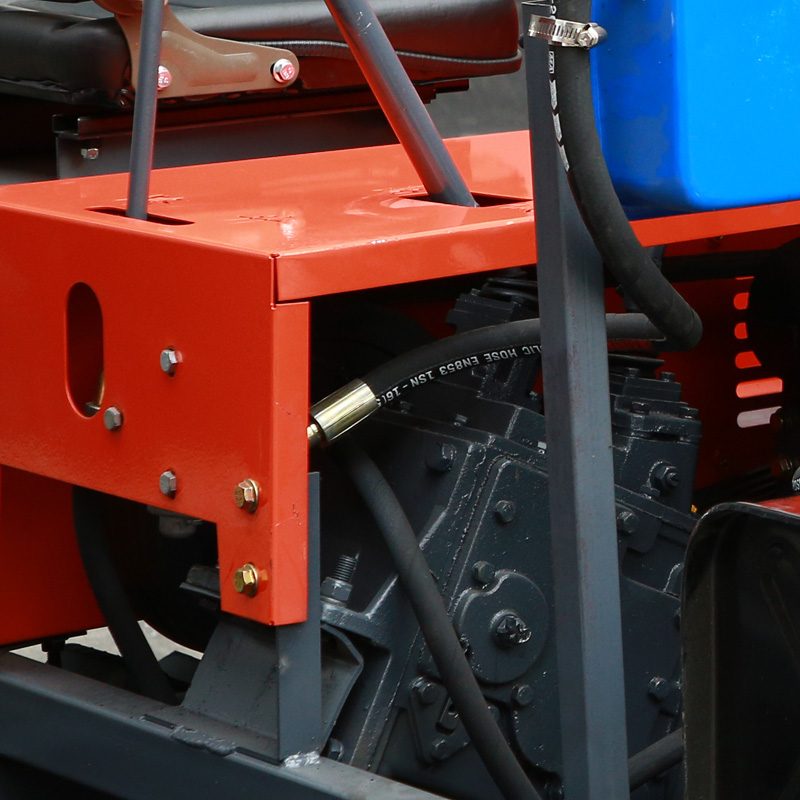

The supplied specification lists a 490 four-cylinder engine for heavy-duty transport and hydraulic operation.
The supplied technical data lists a Guli 23 gearbox as part of the machine’s transmission system.
The machine is equipped with six forward gears and two reverse gears for different transport conditions.

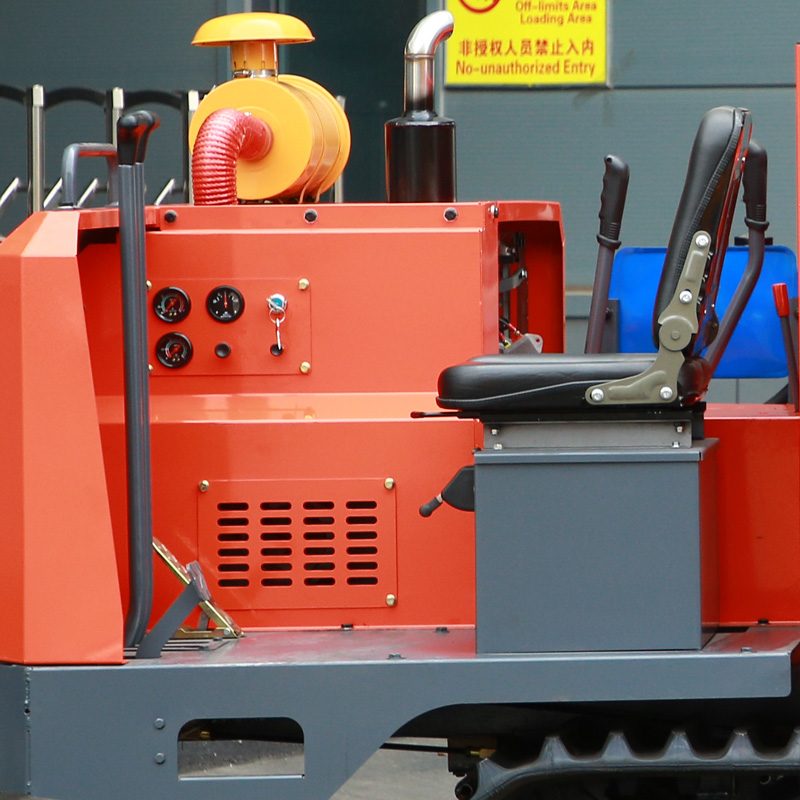

The seated operating position provides a practical control layout for routine heavy-duty transport work.
Engineering rubber tracks provide crawler mobility for suitable muddy, uneven and sloped terrain.

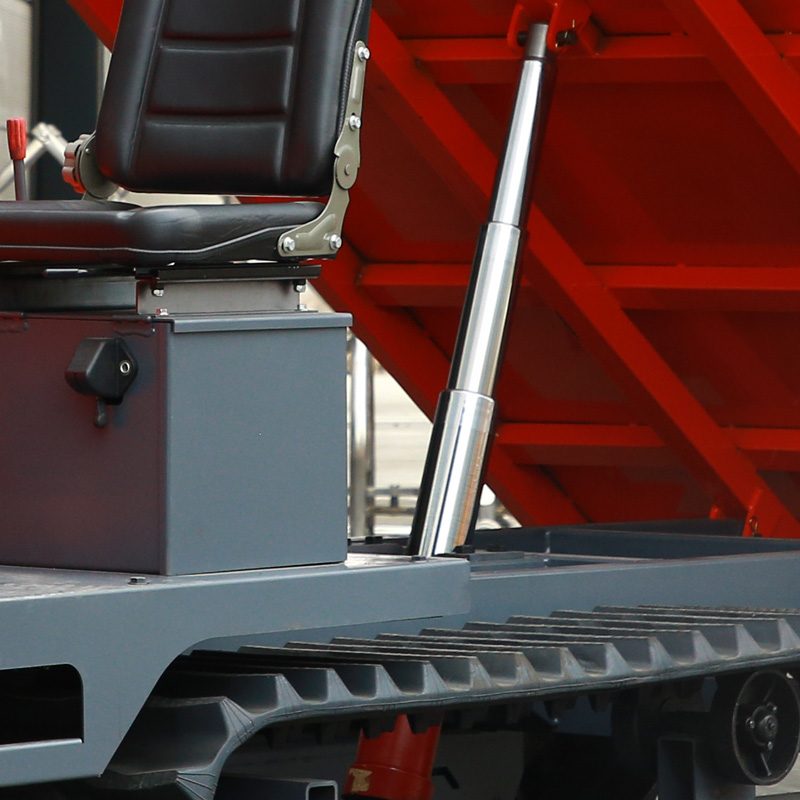

The supplied product images show a three-stage telescopic hydraulic cylinder for cargo-box lifting and unloading.
The 5 T load capacity, enlarged cargo box and engineering rubber track system make this tracked transporter suitable for heavy material handling across construction, forestry, agricultural and landscaping environments.
Suitable for transporting soil, aggregate, bricks, tools and other construction materials across suitable job sites and difficult-access areas.
Can assist with transporting tools, supplies and suitable materials through forestry working areas and uneven outdoor terrain.
Practical for moving fertilizer, feed, farm supplies and other materials across farms, orchards and agricultural environments.
Can transport soil, sand, plants, garden waste and landscaping materials across large outdoor projects.
The crawler platform is suitable for transporting tools and materials through appropriate mountain paths and uneven terrain.
The 5 T load capacity and enlarged cargo box support routine movement of heavier bulk materials across suitable job sites.
| Product Name | 5-Ton Tracked Transporter |
|---|---|
| Load Capacity | 5 T |
| Body Size | 3.5 × 1.7 × 1.6 m |
| Chassis Width | 160 cm |
| Uphill Angle | ≤45° |
| Starting Method | Electric Start |
| Cargo Box Dimensions | 2.4 × 1.6 × 0.6 m |
|---|---|
| Cargo Box Height | 61 cm |
| Hydraulic Self-Unloading | Yes |
| Crane Installation | Available |
| Engine | 490 Four-Cylinder Engine |
|---|---|
| Gearbox | Guli 23 |
| Transmission | 6 Forward + 2 Reverse |
| Track Size | 400 × 90 × 62 |
|---|---|
| Track Type | Engineering Rubber Tracks |
The 5-Ton Tracked Transporter combines a wide crawler chassis, seated operator platform, enlarged cargo box, hydraulic tipping system and multi-speed transmission for demanding material transport applications.
The supplied product information also indicates support for crane installation. Final equipment and optional configuration requirements should be confirmed according to the intended application.
The machine integrates a heavy-duty steel crawler chassis, operator platform, enlarged cargo box, four-cylinder engine, gearbox and hydraulic unloading components into a robust material transport platform.
Before shipment, key operating functions should be checked, including engine starting, forward and reverse travel, transmission operation, steering response, track movement, hydraulic unloading and overall machine condition.
Warranty terms are provided according to the final machine configuration and order conditions.
Replacement and maintenance parts can be supplied according to the selected machine configuration and service requirements.
Operating, maintenance and troubleshooting guidance can be provided when required.
Machine and optional equipment configurations can be discussed according to transportation requirements and working conditions.
Send us your requirements and we’ll provide pricing, product specifications and shipping information.
