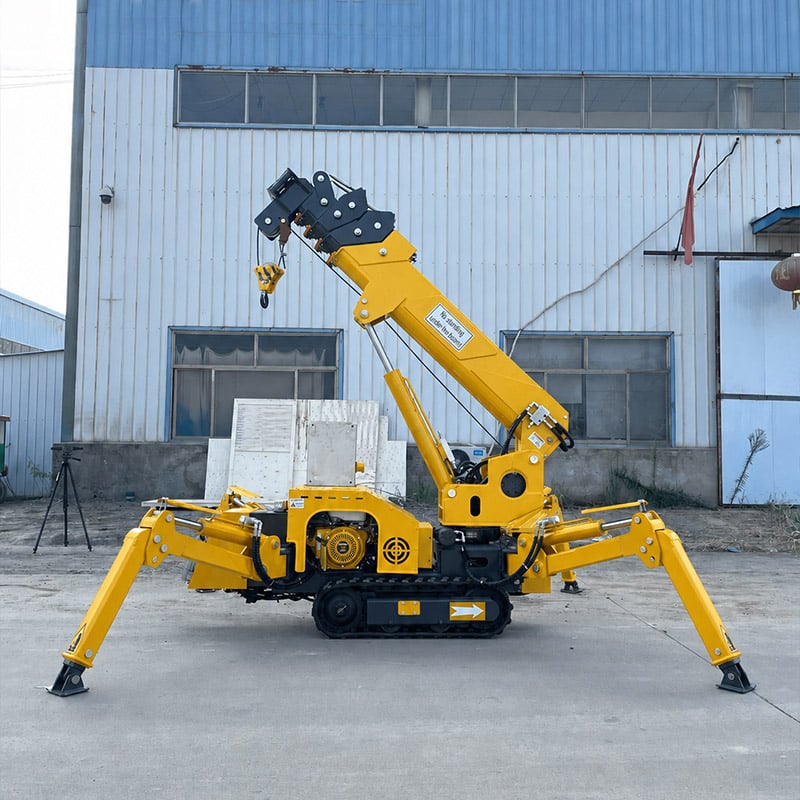

The 2 Ton Spider Crane is a compact crawler-mounted lifting machine designed for confined spaces, indoor lifting and restricted-access job sites. It provides a maximum working radius of 6 m and a maximum lifting height of 6.5 m. With an overall width of only 710 mm, a telescopic boom, hydraulic crawler travel system and extendable outriggers, the crane can operate in narrow working areas where conventional cranes may be difficult to position. A Honda gasoline engine is listed as the standard engine manufacturer, with other engine brands or diesel configurations available according to order requirements. It is suitable for glass installation, steel structure erection, equipment installation, indoor lifting and other precision lifting applications.
The 2 Ton Spider Crane is a compact crawler-mounted lifting machine designed for confined spaces, indoor projects and restricted-access job sites. Its crawler chassis, telescopic boom and extendable outriggers provide flexible positioning for precision lifting work.
The crane provides a maximum working radius of 6 m and a maximum lifting height of 6.5 m. With overall dimensions of approximately 2780 × 710 × 1620 mm and a body width of only 710 mm, it can access narrow working areas where larger conventional cranes may be difficult to position.
A Honda gasoline engine, continuous 360° rotation, hydraulic crawler travel and configurable control options provide flexibility for different indoor and outdoor lifting applications.
The crane uses a 4-section telescopic boom extending up to approximately 6.5 m, providing flexibility across different lifting heights and working radii.
The boom angle can be adjusted from 0° to 78°, while continuous 360° rotation allows flexible load positioning around the machine.

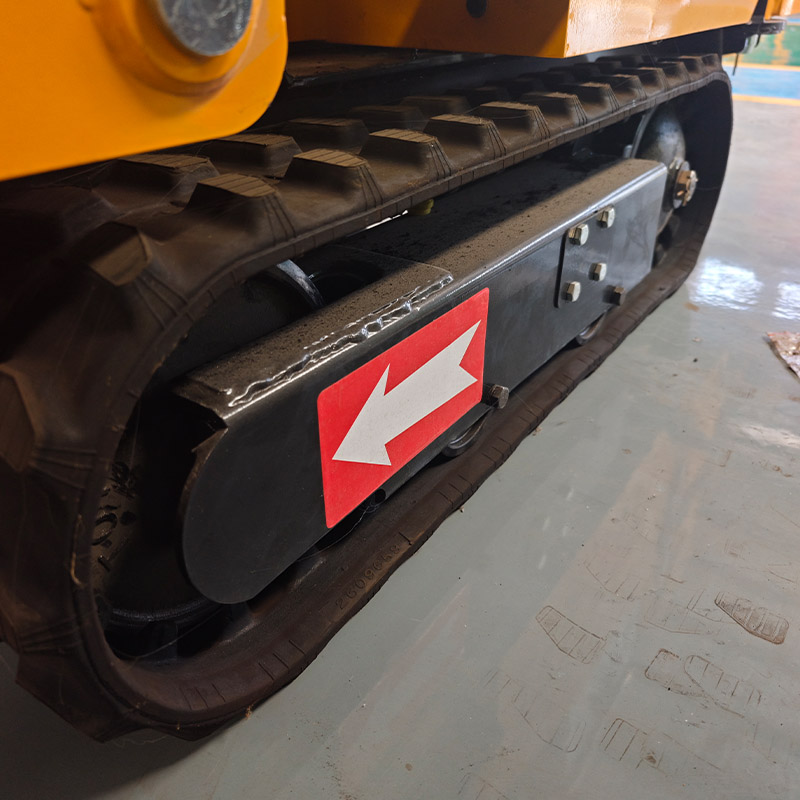

A hydraulic crawler travel system allows the crane to move between working positions at speeds up to 2.5 km/h, with gradeability of up to 25° (36%).
Overall machine dimensions are approximately 2780 × 710 × 1620 mm, with a self weight of approximately 1.8 tons.

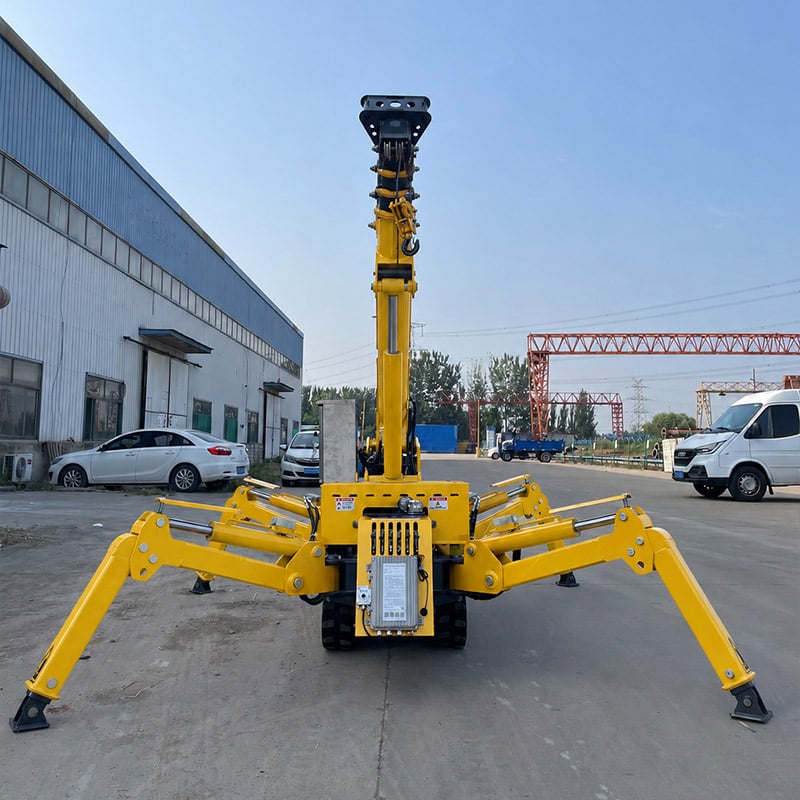

The narrow 710 mm crawler chassis helps the crane enter restricted-access areas and simplifies transportation and positioning on confined job sites.

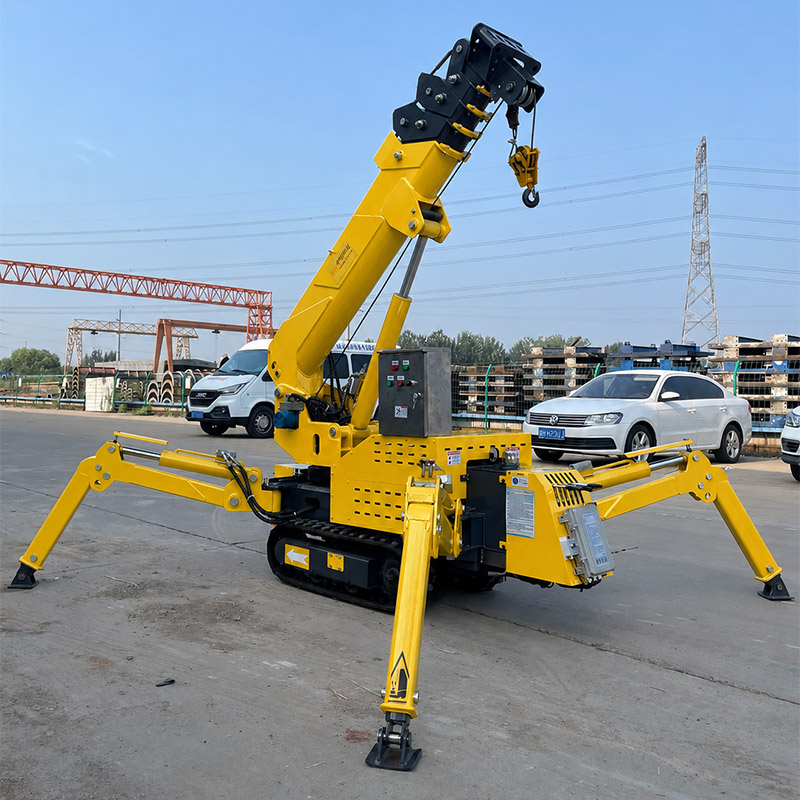

The outrigger system combines manual extension with hydraulic support. Maximum listed outrigger extension is approximately 3620 mm longitudinal, 3440 mm rear and 3470 mm front.
The 2 Ton Spider Crane is equipped with a Honda gasoline engine and also supports an AC 380 V electrical power supply. Other engine brands or diesel configurations may be available according to order requirements.

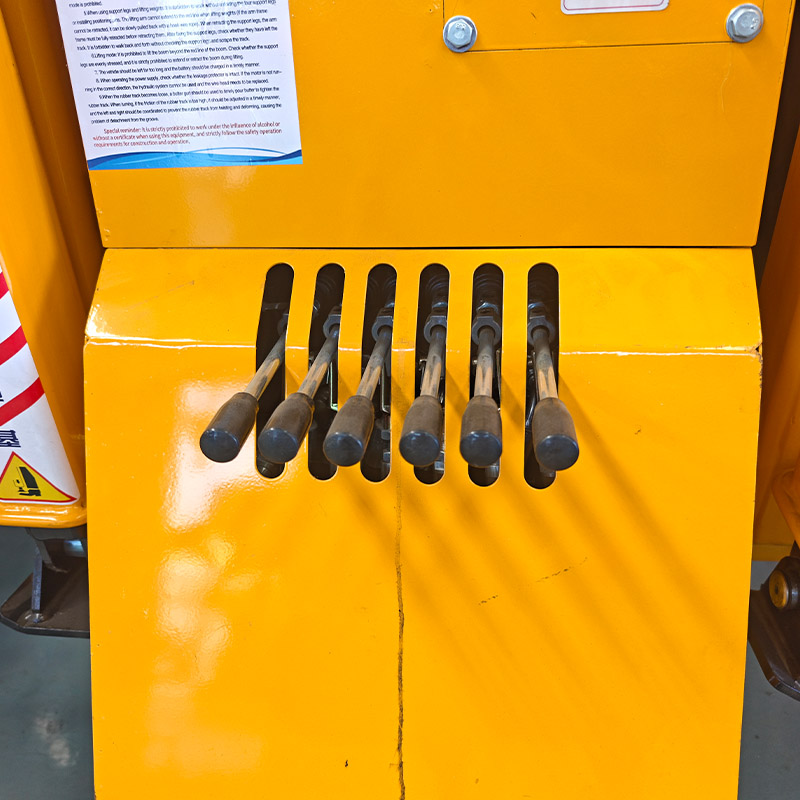

Control and lifting accessories can be configured according to the application, working environment and destination-market requirements.

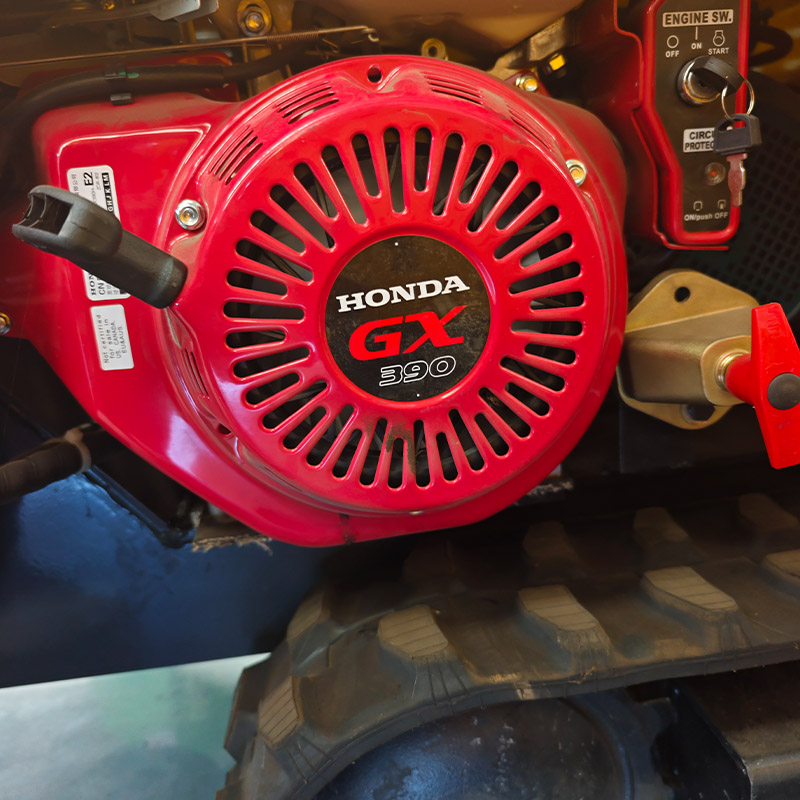

Honda is listed as the standard engine manufacturer, with a 390CC gasoline engine and electric/manual starting configuration.
Optional remote control allows the operator to control crane movements from a suitable viewing position.

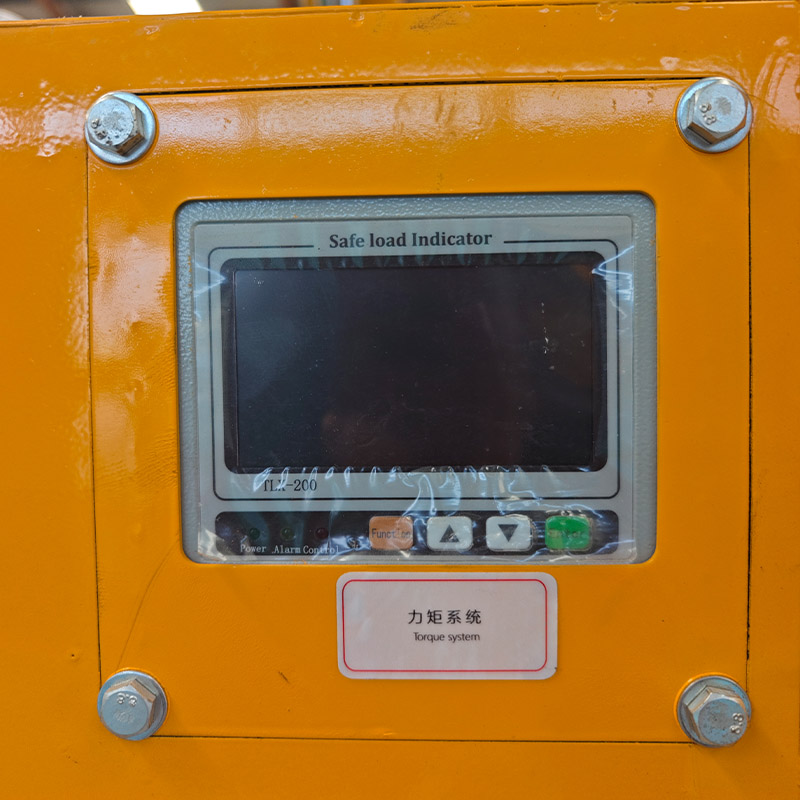

Optional equipment is available to provide operating information and additional lifting flexibility for different working conditions.
Available according to machine configuration and applicable local requirements.
| Product Class | 2 Ton Spider Crane |
|---|---|
| Self Weight | 1.8 ton |
| Maximum Working Radius | 6 m |
| Maximum Lifting Height | 6.5 m |
| Hook Rising Speed | 0–8 m/min (4 ropes) |
| Wire Rope | Ø8 mm × 45 m |
| Boom Configuration | 4-section telescopic boom |
| Boom Length | Up to 6.5 m |
| Boom Extension Time | Approx. 20 sec |
| Boom Angle | 0°–78° |
| Boom Raising Time | Approx. 13 sec |
| Rotation Range | 360° continuous |
| Rotation Time | Approx. 60 sec / revolution |
| Outrigger System | Manual extension + hydraulic support |
| Maximum Outrigger Extension | 3620 mm longitudinal / 3440 mm rear / 3470 mm front |
| Travel System | Hydraulic crawler drive |
| Travel Speed | 0–2.5 km/h |
| Gradeability | 25° (36%) |
| Electrical Supply | AC 380 V |
| Engine Manufacturer | Honda |
| Engine Type | Gasoline engine |
| Engine Specification | 390CC |
| Starting Method | Electric / Manual |
| Fuel | Gasoline |
| Fuel Tank Capacity | 8 L |
| Battery | 12 V 60 Ah |
| Fuel Consumption | 274 g/kWh |
| Noise Level | ≤81.5 dB(A) at 1 m |
| Overall Dimensions | 2780 × 710 × 1620 mm |
| Track Size | 180 mm width / 72 mm pitch / 37 sections |
| Control | Manual control / Optional wireless remote control |
| Alternative Engine Configuration | Other engine brands / Diesel engine optional |
| Optional Equipment | Torque indicator, wireless remote control, personnel basket, hydraulic flying jib and custom colors |
The compact crawler chassis, telescopic boom and extendable outriggers make the crane suitable for lifting work where access, positioning accuracy and working space are important.
Suitable for lifting and positioning glass panels and curtain-wall components.
Suitable for lifting steel components and structural frames during installation.
The 710 mm body width helps the crane access factories, workshops and narrow working areas.
Suitable for lifting machinery and components during installation and maintenance work.
Tell us your required load weight, lifting height, working radius and application. Our team can check whether the 2 Ton Spider Crane matches your working conditions and recommend a suitable configuration.
