The ZL-35 2.5 ton mini excavator is designed for construction, trenching, utility installation, landscaping, drainage and site preparation applications. Equipped with a Kubota D1703 diesel engine and a maximum digging depth of 3208 mm, it combines greater excavation capability with compact dimensions for contractors working on small and medium job sites.
The ZL-35 2.5 ton mini excavator is a compact crawler machine developed for construction and excavation work where increased working range and digging capability are required.
Compared with lighter mini excavators, the ZL-35 provides a larger working envelope for deeper trenching, site preparation, utility excavation and material handling while remaining within the compact excavator category.
Its diesel-powered configuration, hydraulic system and dozer blade provide a practical working platform for regular construction, property-development and infrastructure-support applications.
Provides an extended vertical working range for excavation, loading and material handling across a broader range of job-site conditions.
Supports material discharge into suitable loading areas, stockpiles and other job-site handling positions.
Provides hydraulic capacity for responsive digging and routine machine functions during everyday excavation work.
The standard bucket capacity provides practical productivity for trenching, digging and general material handling.
The dozer blade can be raised for site movement, grading preparation and routine ground-working operations.
Provides useful blade penetration for grading, backfilling and light ground-preparation work.
The ZL-35 is suited to excavation and site-development tasks where deeper working range and increased machine capability can improve productivity over lighter compact excavators.
Suitable for excavation and ground preparation for small buildings, walls and other construction structures.
Practical for trenches used for underground pipelines, drainage systems, cables and other utility installations.
Can assist with digging and reshaping drainage channels, ditches and water-management systems.
Useful for soil removal, excavation and ground preparation before construction or infrastructure work begins.
Suitable for larger planting areas, soil excavation, grading preparation and landscape-development projects.
Practical for excavation, utility preparation and general earthwork around residential, commercial and agricultural properties.
| Model | ZL-35 |
|---|---|
| Machine Class | 2.5 Ton |
| Engine | Kubota D1703 |
| Engine Displacement | 1.642 L |
| Max. Torque | 97.4 (unit not specified) |
| Emission Standard | Euro 5 / EPA4 |
| Hydraulic Flow | 70 L/min |
| Hydraulic Oil Tank Capacity | 44 L |
| Fuel Tank Capacity | 40 L |
| Bucket Capacity | 0.06 m³ |
| Max. Digging Depth | 3208 mm |
|---|---|
| Max. Digging Height | 4800 mm |
| Max. Dumping Height | 3406 mm |
| Max. Dozer Blade Lift | 365 mm |
| Max. Dozer Blade Digging Depth | 385 mm |
| Overall Dimensions | 4915 × 1720 × 2525 mm |
|---|---|
| Track Wheelbase | 1670 mm |

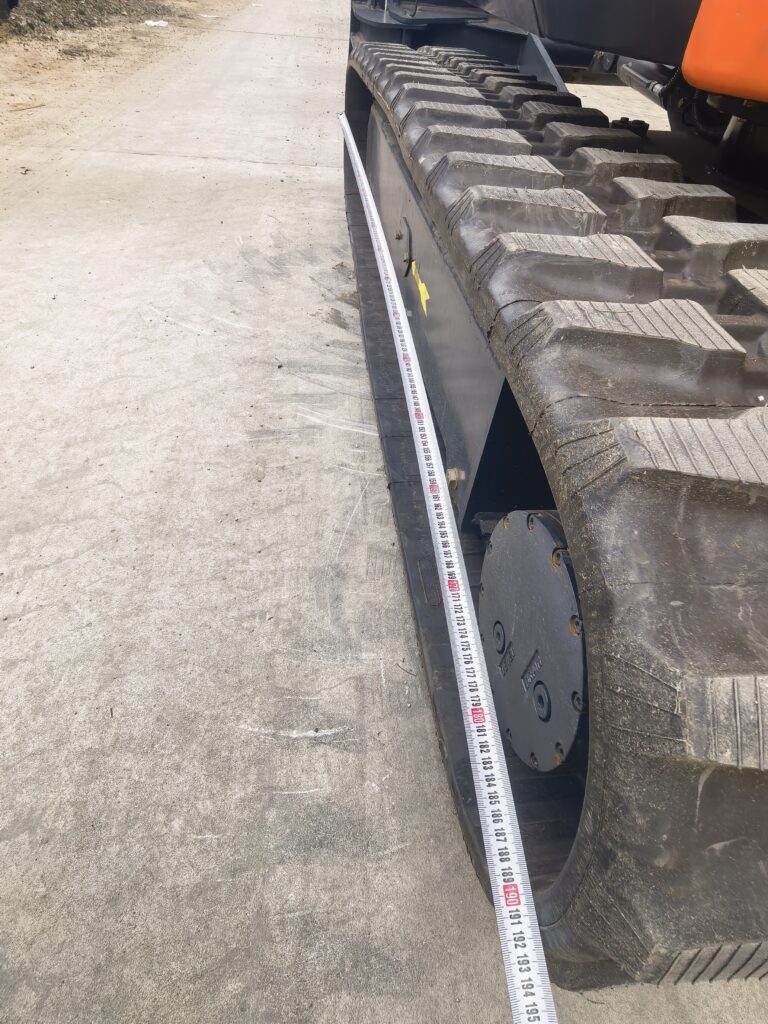

| Rubber Track Length | 2154 mm |
| Track Gauge | 1420 mm |
| Minimum Ground Clearance | 295 mm |
| Tail Swing Radius | 860 mm |
| Front Swing Radius | 2538 mm |
| Dozer Blade Height | 350 mm |
The supplied ZL-35 product data lists Euro 5 and EPA4 emission configurations for applicable destination markets. Final engine and emission specifications should be confirmed according to the destination country before ordering.
Each ZL-35 is assembled and inspected before shipment. Key inspection points include engine operation, hydraulic functions, travel performance, swing operation, digging movements, control functions and overall machine condition.
Pre-shipment checks help verify that major machine functions are operating correctly before delivery.
Warranty terms are provided according to the final machine configuration and order conditions.
Replacement and maintenance parts can be supplied for routine service and repair requirements.
Operating, maintenance and troubleshooting guidance can be provided when required.
Remote technical support can help identify common operating and maintenance issues.
