The 3-Ton Tracked Transporter is a heavy-duty crawler material carrier designed for transporting larger loads across farms, forestry areas, construction sites, landscaping projects and uneven outdoor terrain. Its 3 T load capacity, wider tracked chassis, large cargo box and hydraulic self-unloading system make it suitable for moving soil, fertilizer, feed, tools, construction materials and other suitable cargo in demanding working environments.
The 3-Ton Tracked Transporter is a heavy-duty crawler material carrier developed for moving larger loads across agricultural, forestry, landscaping and construction working environments.
Its wide tracked undercarriage, seated operator position and enlarged cargo box provide a practical transport solution for farms, mountain paths, construction sites and other outdoor areas where conventional wheeled transport equipment may have limited mobility.
The machine combines a powerful engine, electric starting, multi-speed transmission and hydraulic tipping cargo box to support routine transport and unloading of soil, fertilizer, feed, tools, construction materials and other suitable cargo.
The supplied specification lists a Quanchai 25 horsepower engine for heavy-duty transport and hydraulic operation.
The supplied technical data lists a Guli 21 gearbox as part of the machine’s transmission system.
The machine is equipped with six forward gears and two reverse gears for different transport conditions.
The seated operating position provides a practical control layout for routine heavy-duty transport work.

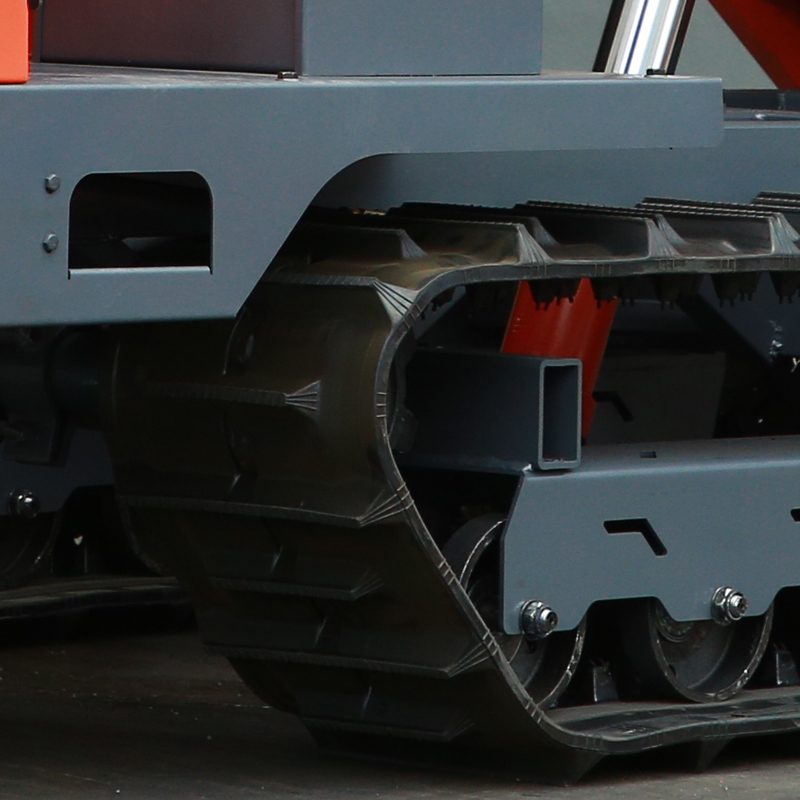

Steel-wire reinforced rubber tracks provide crawler mobility for suitable muddy, uneven and sloped terrain.

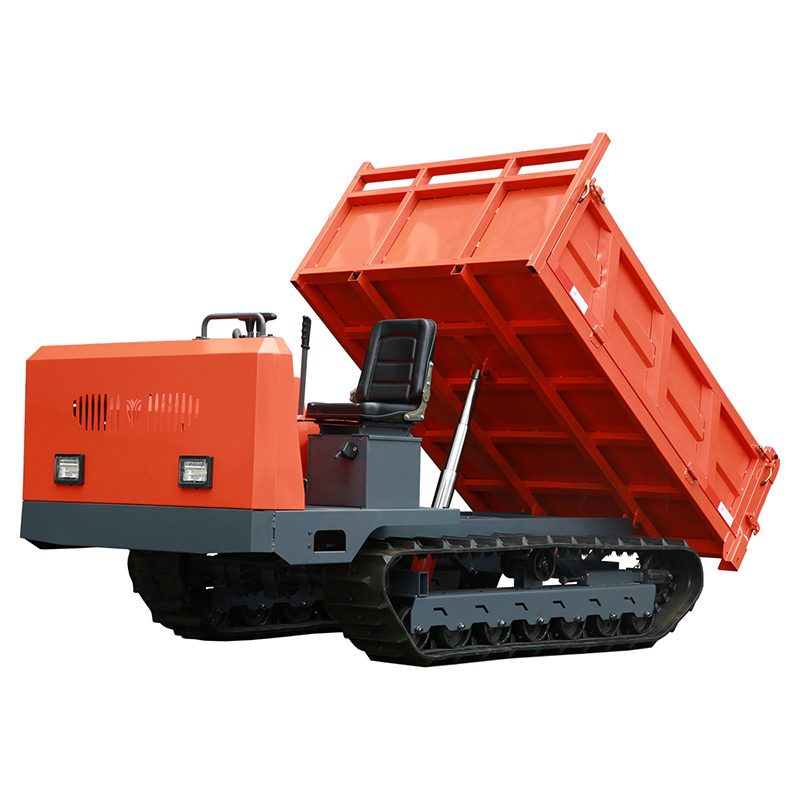

The supplied product images show a multi-stage telescopic hydraulic cylinder for cargo-box lifting and unloading.
The higher carrying capacity, larger cargo box and crawler chassis make this tracked transporter suitable for heavier material handling across agricultural, forestry, landscaping and construction environments.
Suitable for transporting fertilizer, fruit, seedlings, farm tools and other materials across farms, orchards, nurseries and forestry working areas.
Practical for carrying bricks, mortar, soil and other construction materials across compact or difficult-access job sites.
Can transport soil, sand, plants, garden waste and landscaping materials across large outdoor projects.
The crawler platform is suitable for transporting tools and materials through appropriate mountain paths and uneven terrain.
Can assist with moving feed, agricultural supplies and suitable waste materials around farms and livestock working areas.
The 3 T load capacity and large cargo box support routine movement of heavier bulk materials across suitable job sites.
| Product Name | 3-Ton Tracked Transporter |
|---|---|
| Load Capacity | 3 T |
| Body Size | 3.4 × 1.5 × 1.5 m |
| Chassis Width | 155 cm |
| Uphill Angle | ≤45° |
| Starting Method | Electric Start |
| Cargo Box Dimensions | 2.2 × 1.5 × 0.5 m |
|---|---|
| Cargo Box Height | 61 cm |
| Hydraulic Self-Unloading | Yes |
| Crane Installation | Available |
| Engine | Quanchai 25 HP |
|---|---|
| Gearbox | Guli 21 |
| Transmission | 6 Forward + 2 Reverse |
| Track Size | 350 × 90 × 56 |
|---|---|
| Track Type | Steel-Wire Reinforced Rubber Track |
The 3-Ton Tracked Transporter combines a wide crawler chassis, seated operator platform, large cargo box, hydraulic tipping system and multi-speed transmission for demanding material transport applications.
The supplied product information also indicates support for crane installation. Final equipment and optional configuration requirements should be confirmed according to the intended application.
The machine integrates a heavy-duty steel crawler chassis, operator platform, large cargo box, engine, gearbox and hydraulic unloading components into a robust material transport platform.
Before shipment, key operating functions should be checked, including engine starting, forward and reverse travel, transmission operation, steering response, track movement, hydraulic unloading and overall machine condition.
Warranty terms are provided according to the final machine configuration and order conditions.
Replacement and maintenance parts can be supplied according to the selected machine configuration and service requirements.
Operating, maintenance and troubleshooting guidance can be provided when required.
Machine and optional equipment configurations can be discussed according to transportation requirements and working conditions.
Send us your requirements and we’ll provide pricing, product specifications and shipping information.
