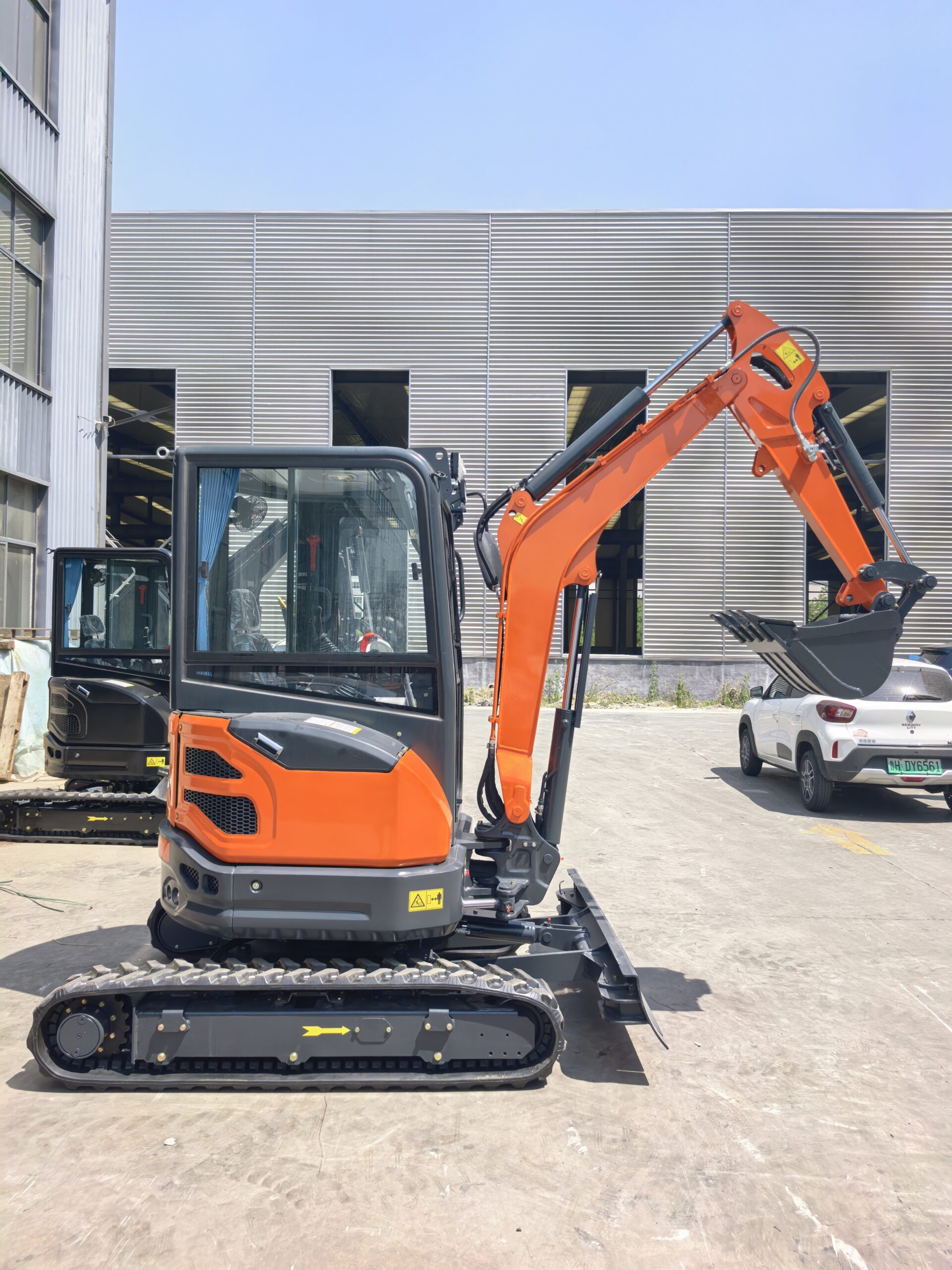

The ZL-25 2.3 ton mini excavator is designed for trenching, landscaping, utility installation, site preparation and construction applications. Equipped with a Yanmar 3TNV80F engine, a maximum digging depth of 2410 mm and a 4520 mm maximum digging radius, it provides greater working range and excavation capability for demanding compact job sites.
The ZL-25 2.3 ton mini excavator is a compact crawler machine developed for excavation, utility and site-preparation work where greater hydraulic capability and working range are required.
Compared with lighter compact excavators, the ZL-25 provides increased machine capacity for more demanding digging, trench preparation and material handling while remaining within the compact excavator category.
Its piston-type travel and swing motors, load-sensing hydraulic control valve and standard digging configuration provide a practical platform for regular construction and utility work.
Provides increased vertical working range for excavation, loading and material handling applications.
Supports material discharge into suitable loading areas, piles and job-site handling positions.
Provides practical breakout capability for trenching, soil excavation and construction-site preparation.
Supports controlled excavation and pulling force during trenching and digging operations.
Provides hydraulic capacity for responsive boom, arm, bucket and travel functions during daily operation.
The hydraulic system is configured to support standard digging functions and compatible hydraulic equipment.
The ZL-25 can be used for more demanding compact excavation tasks where increased working reach, hydraulic capacity and digging force can improve productivity.
Suitable for trenches used for underground pipelines, drainage systems, cables and other utility installations.
Can assist with excavation and ground preparation for small buildings, walls and other construction structures.
Useful for soil removal, clearing and excavation before construction, landscaping or infrastructure work begins.
Suitable for digging and reshaping drainage channels, ditches and water-management systems.
Can be used for larger planting areas, soil excavation, grading preparation and landscape-development projects.
Practical for excavation, land preparation and utility work around residential, commercial and agricultural properties.
| Model | ZL-25 |
|---|---|
| Operating Weight | 2300 kg |

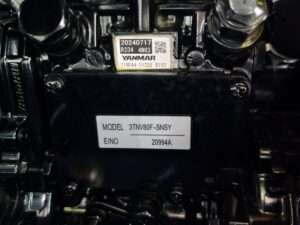

| Standard Engine | Yanmar 3TNV80F |
| Bucket Capacity | 0.06 m³ |
| Standard Bucket Width | 450 mm |
| Fuel Tank Capacity | 20 L |
| Max. Travel Speed | 2.7 km/h |
| Swing Speed | 9.5 rpm |
| Max. Gradeability | 40° |
| Bucket Digging Force | 20 kN |
|---|---|
| Arm Digging Force | 22 kN |
| Max. Tractive Force | 25 kN |
| Max. Digging Depth | 2410 mm |
| Max. Digging Height | 4190 mm |
| Max. Dumping Height | 2880 mm |
| Max. Digging Radius | 4520 mm |
| Minimum Turning Radius | 2500 mm |
| Hydraulic Flow | 70 L/min |
|---|---|
| Hydraulic Pressure | 25 MPa |
| Swing Motor | Piston Motor |
| Travel Motor | Piston Motor |
| Hydraulic Control Valve | Load-Sensing Valve |
| Ground Pressure | 27 kPa |
| Total Height | 2450 mm |
|---|---|
| Chassis Width | 1500 mm |
| Track Model | 250 × 48 × 84 |

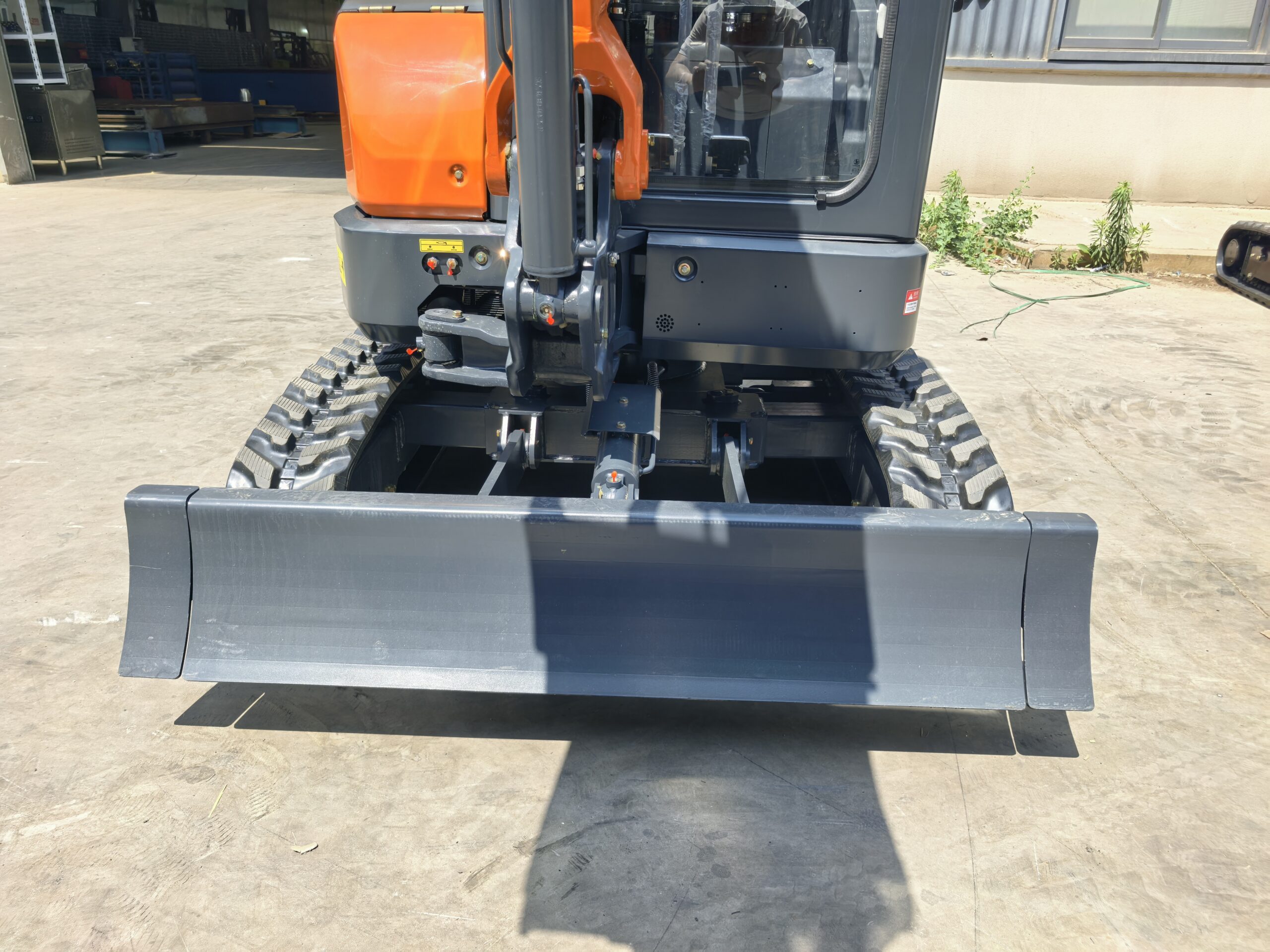

| Max. Dozer Blade Lift | 200 mm |
| Max. Dozer Blade Digging Depth | 200 mm |
Optional attachments and equipment can be selected according to working conditions, hydraulic requirements and project applications. Please confirm attachment compatibility and required hydraulic specifications before ordering.
Each ZL-25 is assembled and inspected before shipment. Key inspection points include engine operation, hydraulic functions, travel performance, swing operation, digging movements, control functions and overall machine condition.
Pre-shipment checks help verify that major machine functions are operating correctly before delivery.
Warranty terms are provided according to the final machine configuration and order conditions.
Replacement and maintenance parts can be supplied for routine service and repair requirements.
Operating, maintenance and troubleshooting guidance can be provided when required.
Remote technical support can help identify common operating and maintenance issues.
