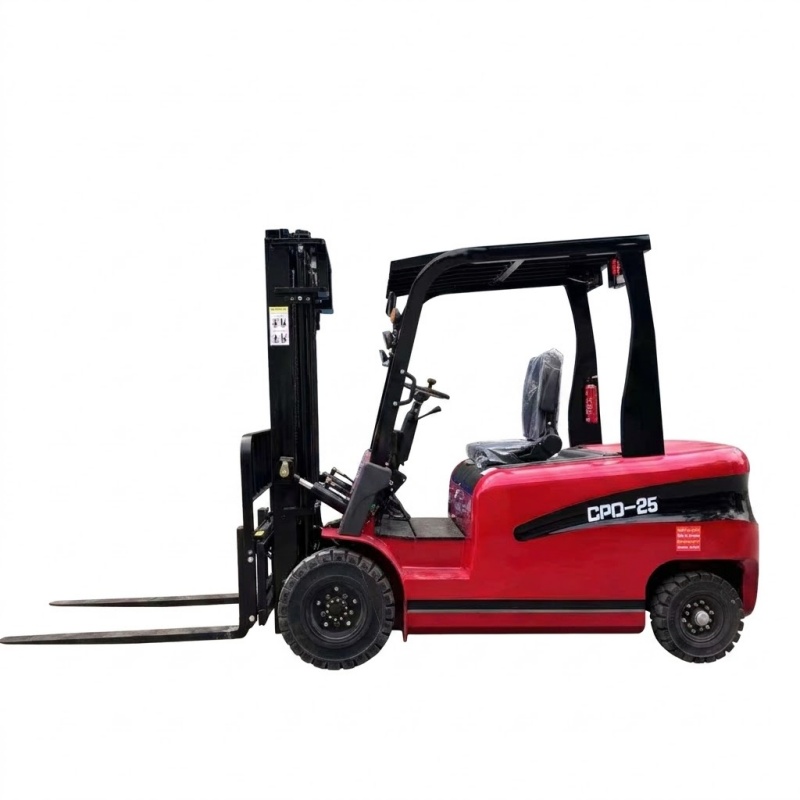

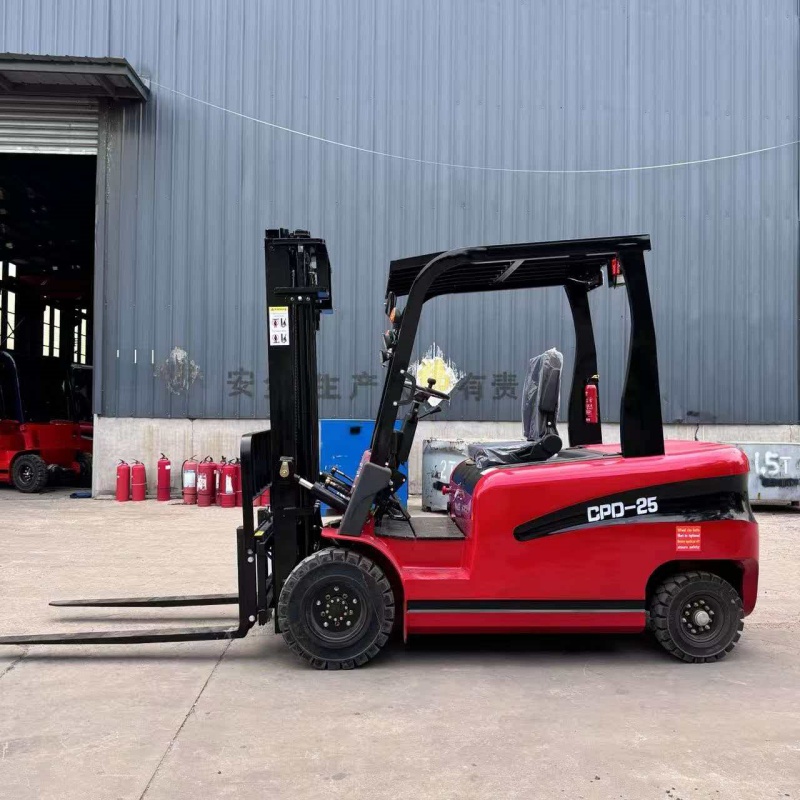

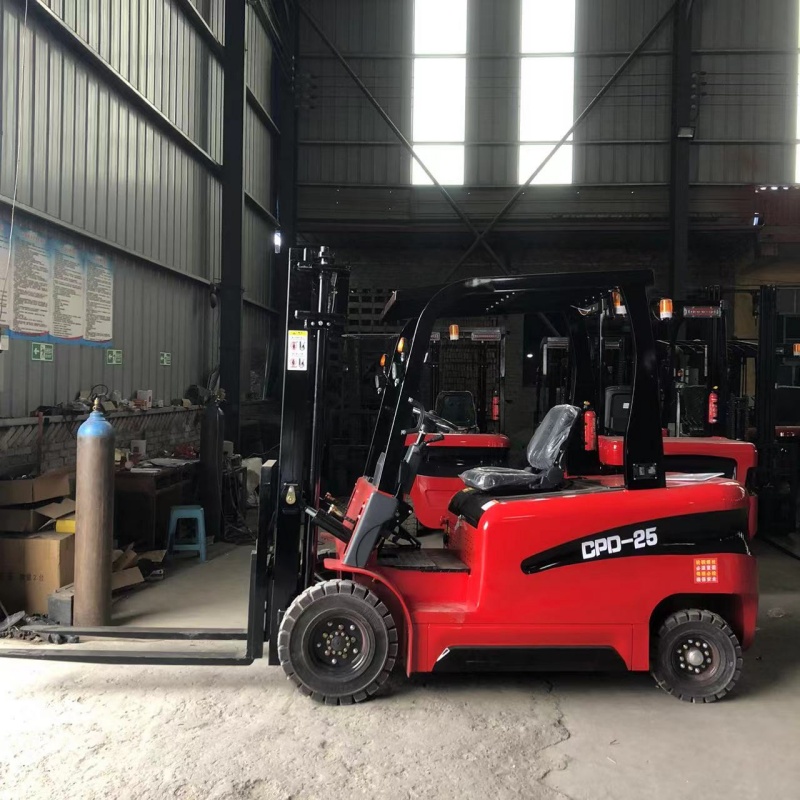

The 2.5 Ton Electric Forklift is a battery-powered material handling solution designed for warehouses, factories, logistics facilities and industrial operations requiring higher lifting capacity. With a rated lifting capacity of 2.5 tons, lifting heights from 3 to 6 m and a 2315 mm turning radius, it provides increased load handling capability while maintaining the low-noise and low-maintenance advantages of electric operation.
The 2.5 Ton Electric Forklift is designed for pallet handling, stacking and material transport in warehouses, factories, logistics centers and industrial facilities. Its 2500 kg rated lifting capacity makes it suitable for businesses requiring greater load handling capability than smaller electric forklift models.
Battery-powered operation helps reduce working noise and routine engine-related servicing. With lifting height options from 3 to 6 m, a 500 mm load center distance and a minimum turning radius of 2315 mm, the forklift offers a practical combination of lifting capacity, electric power and maneuverability.
Provides a 2.5 ton rated lifting capacity for heavier palletized goods and industrial material handling tasks.
Multiple mast configurations support different stacking heights and warehouse storage requirements.
The specified 500 mm load center provides a reference for rated load handling performance.
The higher-capacity battery system supports electric operation for demanding material handling applications.
The forklift has an overall width of 1200 mm and an overall length of 3650 mm with forks installed. A minimum turning radius of 2315 mm provides practical maneuverability for pallet transport, stacking and loading operations.
The specified overall width supports use in suitable warehouse, factory and logistics environments.
Overall machine length with the forks installed is approximately 3650 mm.
Provides practical ground clearance for normal warehouse and industrial operating surfaces.
Provides a reference for evaluating warehouse aisle width and right-angle pallet handling space.
The forklift uses a 60 V / 150 Ah lead-acid battery system together with a 4 kW drive motor and a 5 kW oil pump motor. Compared with smaller electric forklift models, this configuration provides increased electric and hydraulic power for higher-capacity lifting and material handling applications.
Higher battery capacity supports electric operation for industrial handling applications requiring increased lifting capability.
The electric drive motor provides power for machine travel and positioning during material handling operations.
The higher-output oil pump motor supplies hydraulic power for lifting and handling heavier loads.
Electric power helps reduce operating noise and routine servicing associated with conventional engines.
The 2.5 Ton Electric Forklift is available with lifting height configurations ranging from 3 to 6 m, allowing it to support different pallet stacking, warehouse racking and material loading requirements.
Multiple mast configurations can be selected according to storage rack height and stacking requirements.
The specified load center distance is 500 mm for the rated lifting configuration.
Provides the specified adjustment range for the lifting mechanism.
The lowered mast height provides a reference for access through indoor doors and working areas.
| Power Type | Battery |
|---|---|
| Rated Lifting Capacity | 2500 kg |
| Load Center Distance | 500 mm |
| Overall Length with Forks | 3650 mm |
| Overall Length without Forks | 2600 mm |
| Overall Width | 1200 mm |
| Mast Height, Lowered | 2100 mm |
| Overhead Guard Height | 2100 mm |
| Maximum Height During Operation | 3–6 m |
| Front Wheel Track | 840 mm |
| Rear Wheel Track | 741 mm |
| Minimum Ground Clearance | 150 mm |
| Maximum Lifting Height | 3–6 m |
| Lift Lever Adjustment Range | 1040 mm |
| Minimum Turning Radius | 2315 mm |
| Minimum Right-Angle Passage Width | 3995 mm |
| Front Tire Size | 650-10 |
| Rear Tire Size | 500-8 |
| Lead-Acid Battery Voltage / Capacity | 60 V / 150 Ah |
| Drive Motor Power | 4 kW |
| Oil Pump Motor Power | 5 kW |
The 2.5 Ton Electric Forklift is suitable for businesses requiring higher-capacity electric lifting equipment for pallet handling, stacking, loading and industrial material transport.
Suitable for transporting heavier palletized goods between storage, picking and loading areas.
Supports material movement between production, storage, assembly and shipping areas.
Multiple mast height options support different warehouse rack and pallet stacking requirements.
Suitable for loading, unloading and short-distance transport of heavier palletized materials.
Lifting height and machine configuration can be discussed according to your warehouse layout and material handling requirements.
Support is available for product communication, order coordination and international shipping arrangements.
Provide your required lifting capacity, lifting height and working environment so our team can help confirm a suitable configuration.
Send us your requirements and we’ll provide pricing, product specifications and shipping information.
