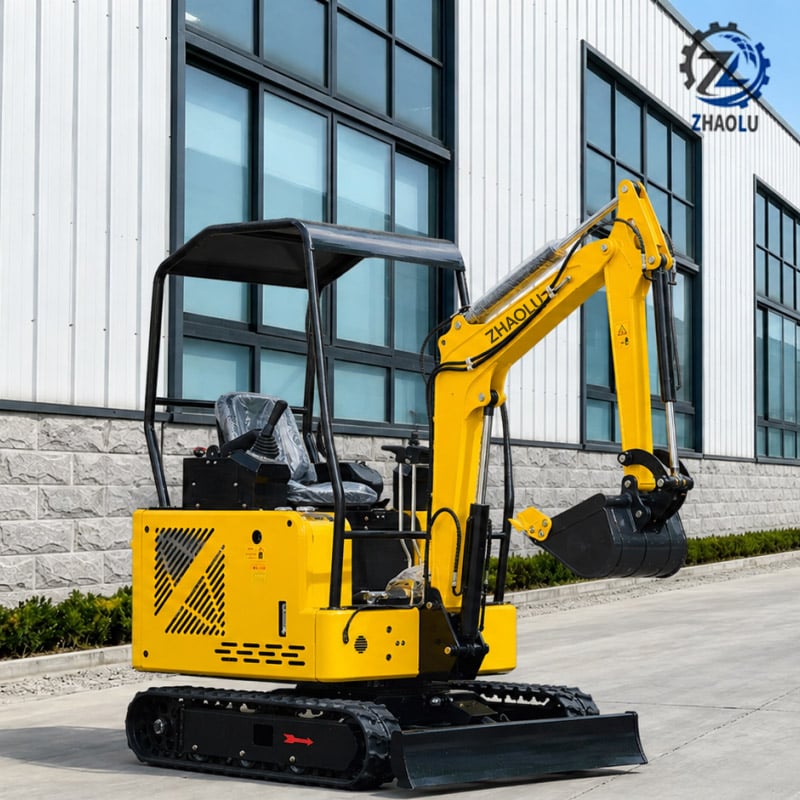

The ZL-18 1.4 ton mini excavator is designed for trenching, landscaping, drainage, utility installation, farms and small construction projects. With 20 kW diesel power, a maximum digging depth of 2200 mm and a 3330 mm maximum digging radius, it provides practical excavation performance for a wide range of compact job sites.

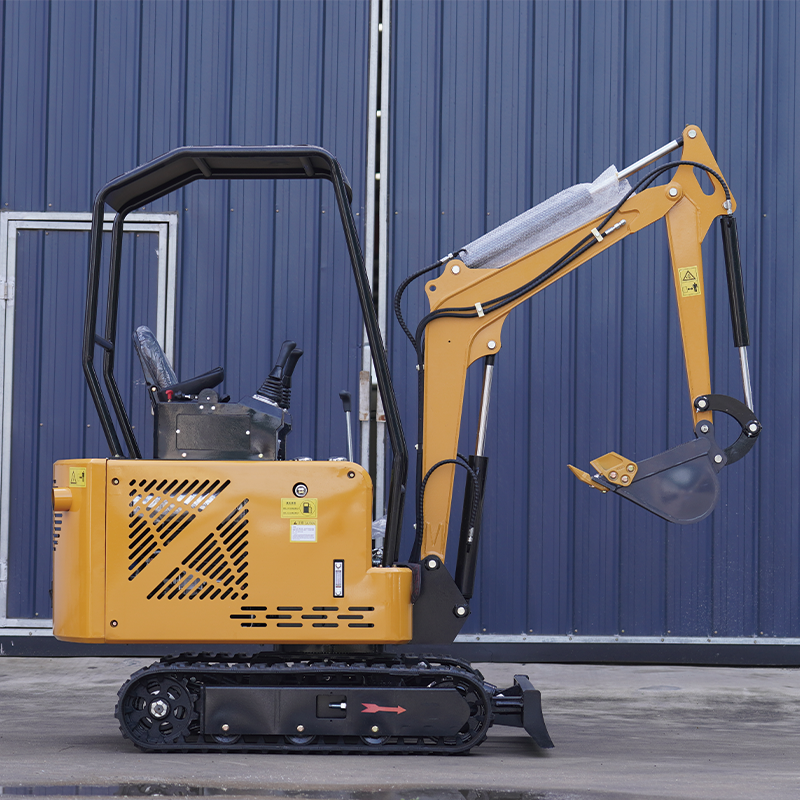

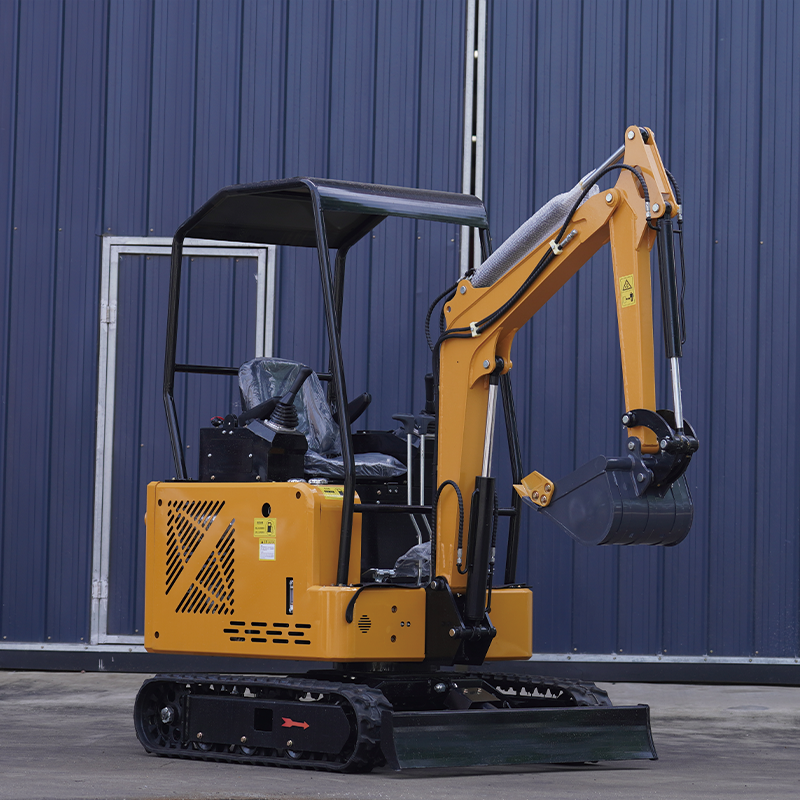

The ZL-18 1.4 ton mini excavator is a compact diesel-powered crawler machine developed for routine excavation and site-maintenance work where stronger working capability is required without moving to a much larger excavator.
Its crawler undercarriage and compact machine structure provide a practical platform for trench preparation, digging, material handling and other everyday small-site tasks.
The standard machine uses a Changchai 390Q diesel engine, while alternative engine and equipment configurations can be selected according to destination-market and project requirements.
Provides practical vertical working range for excavation, loading and routine material handling tasks.
Allows excavated soil and loose material to be discharged into nearby piles and suitable loading positions.
Supports more vertical excavation for trench walls and digging tasks requiring controlled working geometry.
A compact turning radius helps improve positioning and maneuverability on restricted job sites.
The machine maintains a relatively compact footprint for maneuvering across small construction, agricultural and property work areas.
The standard bucket capacity is suitable for routine digging, trench preparation and light material handling work.
The ZL-18 can be used for a range of everyday excavation and site-preparation tasks where deeper digging capability and compact crawler access can improve working efficiency.
Suitable for underground trenches used for water pipes, electrical cables and other small utility installations.
Can assist with digging and reshaping drainage channels around farms, properties and construction areas.
Suitable for light foundation excavation and ground preparation for small structures and site improvements.
Useful for removing soil, preparing compact work areas and completing routine excavation before construction or landscaping work.
Practical for irrigation work, planting preparation, drainage maintenance and other digging tasks around farms and rural properties.
Can assist with garden renovation, land preparation and routine excavation around residential and commercial properties.
| Model | ZL-18 |
|---|---|
| Operating Weight | 1400 kg |
| Standard Engine | Changchai 390Q |
| Engine Power | 20 kW / 2300 rpm |
| Standard Bucket Width | 400 mm |
| Bucket Capacity | 0.03 m³ |
| Optional Engine | Laidong 385 |
| Max. Digging Height | 2880 mm |
|---|---|
| Max. Dumping Height | 2100 mm |
| Max. Digging Depth | 2200 mm |
| Max. Vertical Digging Depth | 1760 mm |
| Max. Digging Radius | 3330 mm |
| Minimum Turning Radius | 1555 mm |
| Transport Length | 2600 mm |
|---|---|
| Wooden Crate Length | 3360 mm |
| Total Width | 1300 mm |
| Total Height | 2344 mm |
| Turntable Width | 1050 mm |
| Chassis Width | 1300 mm |
| Track Width | 180 mm |
| Track Gauge | 1120 mm |
| Platform Ground Clearance | 400 mm |
| Minimum Ground Clearance | 145 mm |
Optional equipment and engine configurations are available according to working conditions, climate and destination-market requirements. Please confirm final compatibility and availability before ordering.
Each ZL-18 is assembled and inspected before shipment. Key inspection points include engine operation, hydraulic functions, travel performance, digging movements, control functions and overall machine condition.
Pre-shipment checks help verify that major machine functions are operating correctly before delivery.
Warranty terms are provided according to the final machine configuration and order conditions.
Replacement and maintenance parts can be supplied for routine service and repair requirements.
Operating, maintenance and troubleshooting guidance can be provided when required.
Remote technical support can help identify common operating and maintenance issues.
