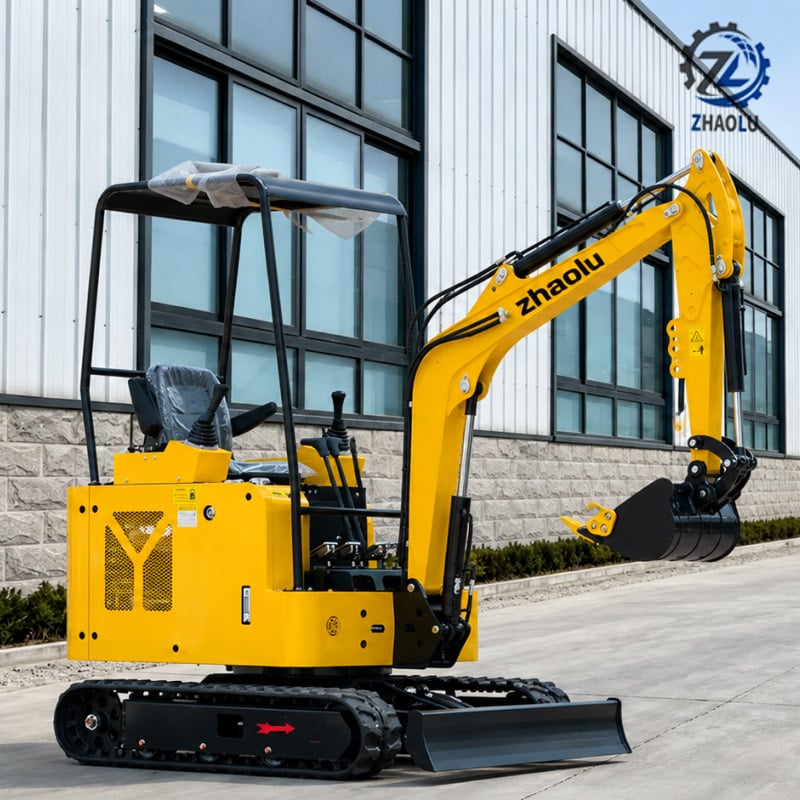

The ZL-17 1.2 ton mini excavator is designed for landscaping, farms, trenching, drainage, utility installation and small construction projects. With an 18 kW diesel engine, 1940 mm maximum digging depth and 3380 mm digging radius, it provides stronger excavation capability while maintaining compact dimensions for small and limited-access job sites.

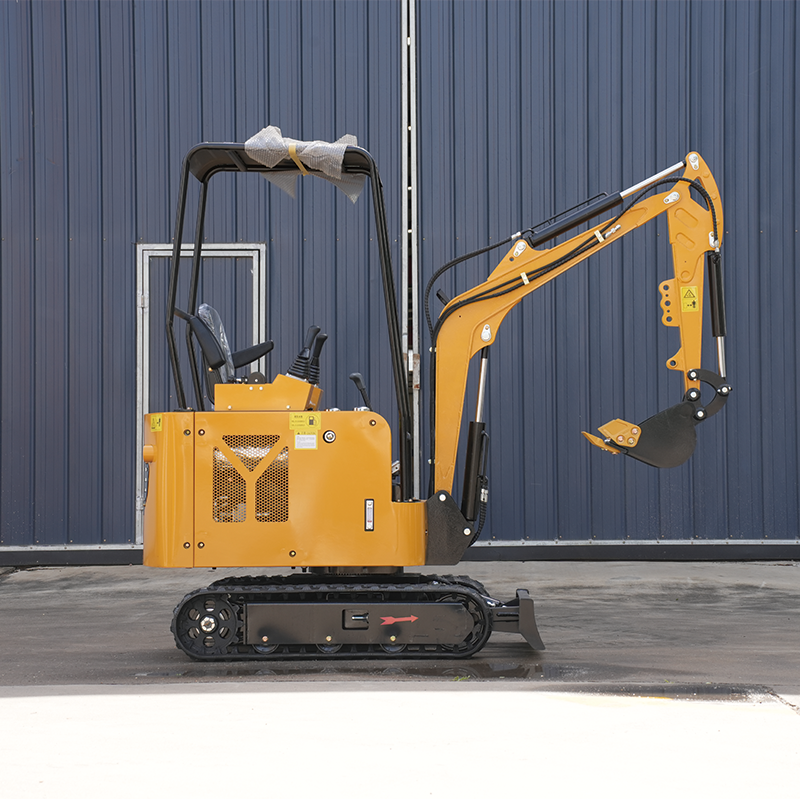

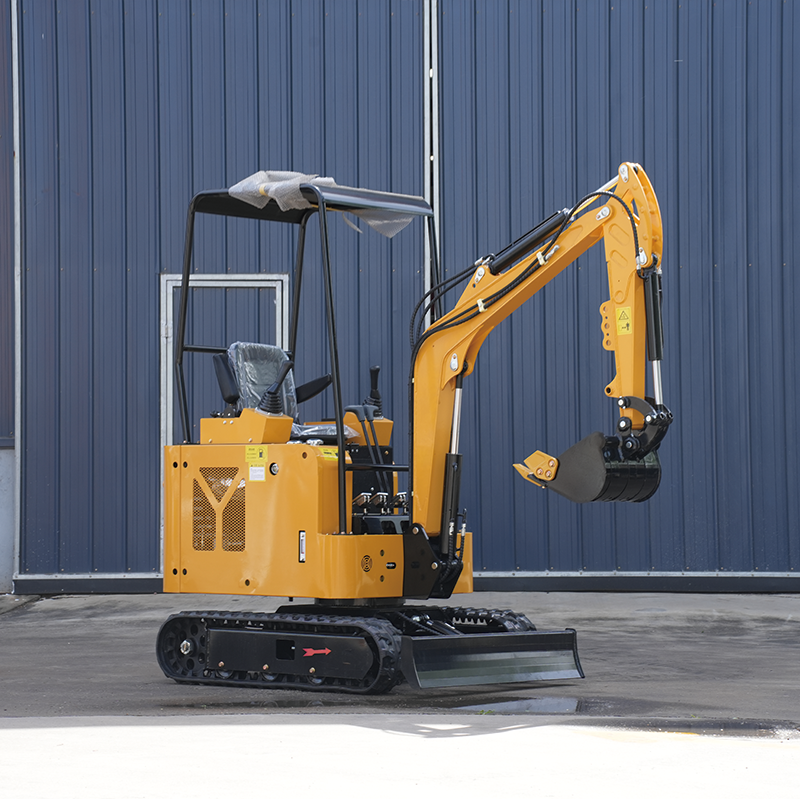

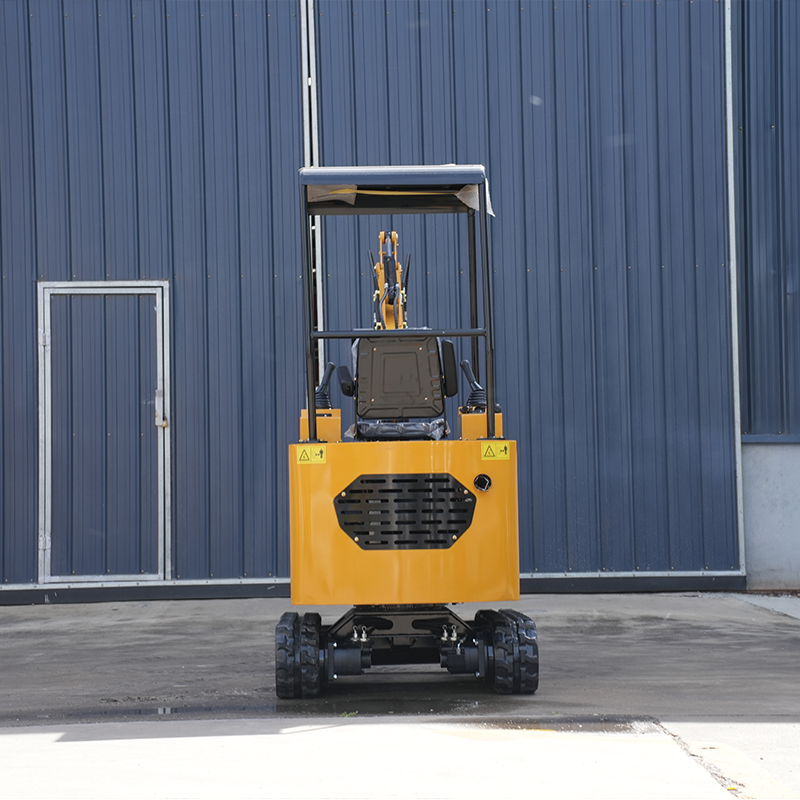

The ZL-17 1.2 ton mini excavator is a compact diesel-powered crawler machine developed for routine excavation and maintenance work where stronger digging capability and practical maneuverability are both important.
Compared with lighter micro excavators, the ZL-17 provides a larger working envelope and increased excavation capability while remaining suitable for small-site operation and transport.
Its crawler undercarriage and compact machine structure provide a practical platform for everyday digging, while optional cab, air-conditioning, chassis-extension and attachment configurations can be selected according to working requirements.
Provides extended working reach for excavation tasks where reducing frequent machine repositioning can improve efficiency.
Provides useful vertical working range for excavation, loading and routine material handling.
Allows excavated soil and loose material to be discharged into nearby piles and suitable loading positions.
Supports more vertical excavation for trench walls and digging tasks requiring controlled working geometry.

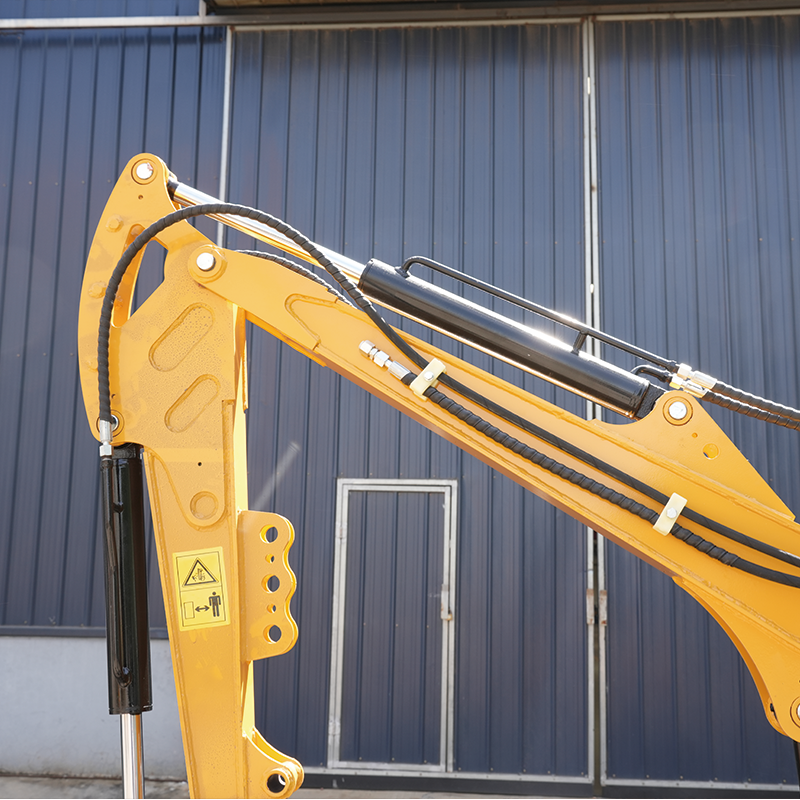

Provides useful arm digging force for controlled excavation, trench shaping and material movement.
The standard bucket capacity is suitable for routine digging, trench preparation and light material handling work.
The ZL-17 can be used for a range of routine excavation and site-maintenance tasks where stronger digging capability and compact machine access can improve working efficiency.
Suitable for underground trenches used for water pipes, electrical cables and other small utility installations.
Can assist with digging and reshaping drainage channels around farms, properties and construction areas.
Practical for planting pits, irrigation work and other routine excavation tasks on farms and agricultural sites.
Suitable for light foundation excavation and ground preparation for small structures and site improvements.
Useful for removing soil, preparing compact work areas and completing general small-site excavation tasks.
Can assist with routine digging, grading preparation and maintenance around residential, agricultural and commercial properties.
| Model | ZL-17 |
|---|---|
| Operating Weight | 1200 kg |

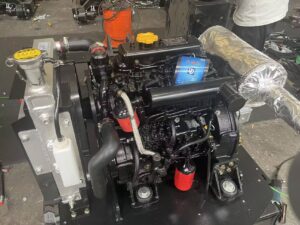

| Engine Type | 385 Series Diesel Engine |
| Engine Power | 18 kW / 2300 rpm |
| Bucket Capacity | 0.03 m³ |
| Max. Bucket Digging Force | 11 kN |
| Max. Dipper Stick Digging Force | 8 kN |
| Max. Digging Height | 2870 mm |
|---|---|
| Max. Dumping Height | 2016 mm |
| Max. Digging Depth | 1940 mm |
| Max. Vertical Digging Depth | 1785 mm |
| Max. Digging Radius | 3380 mm |
| Minimum Turning Radius | 1583 mm |
| Tail / Track-End Turning Dimension | 762 mm |
| Transport Length | 2200 mm |
|---|---|
| Wooden Crate Length | 2800 mm |
| Total Length | 2512 mm |
| Total Width | 1000 / 1200 mm |
| Total Height | 2245 mm |
| Turntable Width | 805 mm |
| Chassis Width | 925 mm |
| Track Width | 180 mm |
| Track Gauge | 930 mm |
Optional equipment is available according to working conditions, climate and project requirements. Please confirm final configuration, compatibility and availability before ordering.
Each ZL-17 is assembled and inspected before shipment. Key inspection points include engine operation, hydraulic functions, travel performance, digging movements, control functions and overall machine condition.
Pre-shipment checks help verify that major machine functions are operating correctly before delivery.
Warranty terms are provided according to the final machine configuration and order conditions.
Replacement and maintenance parts can be supplied for routine service and repair requirements.
Operating, maintenance and troubleshooting guidance can be provided when required.
Remote technical support can help identify common operating and maintenance issues.
