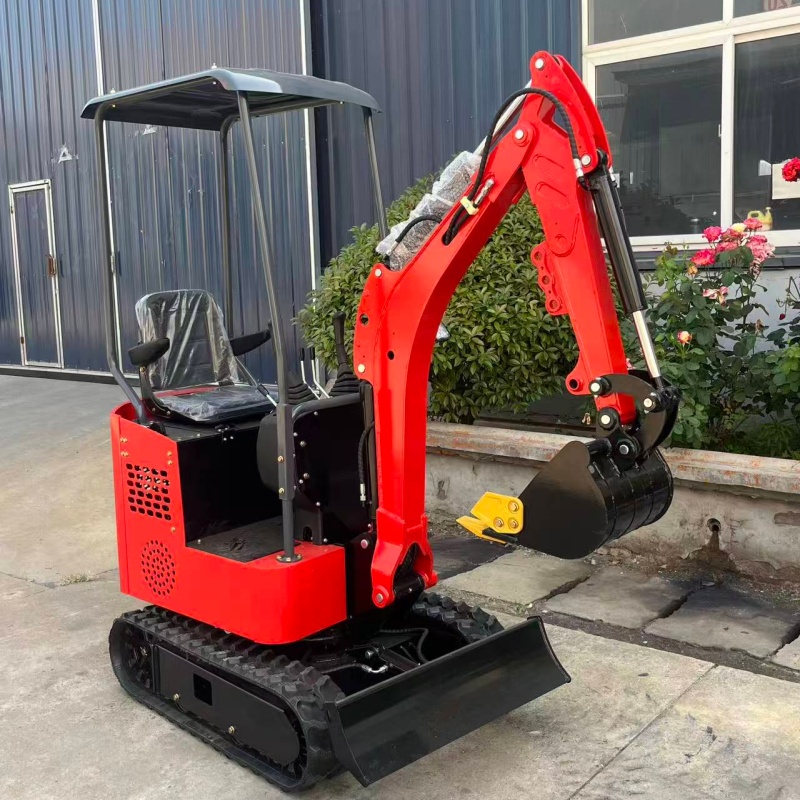

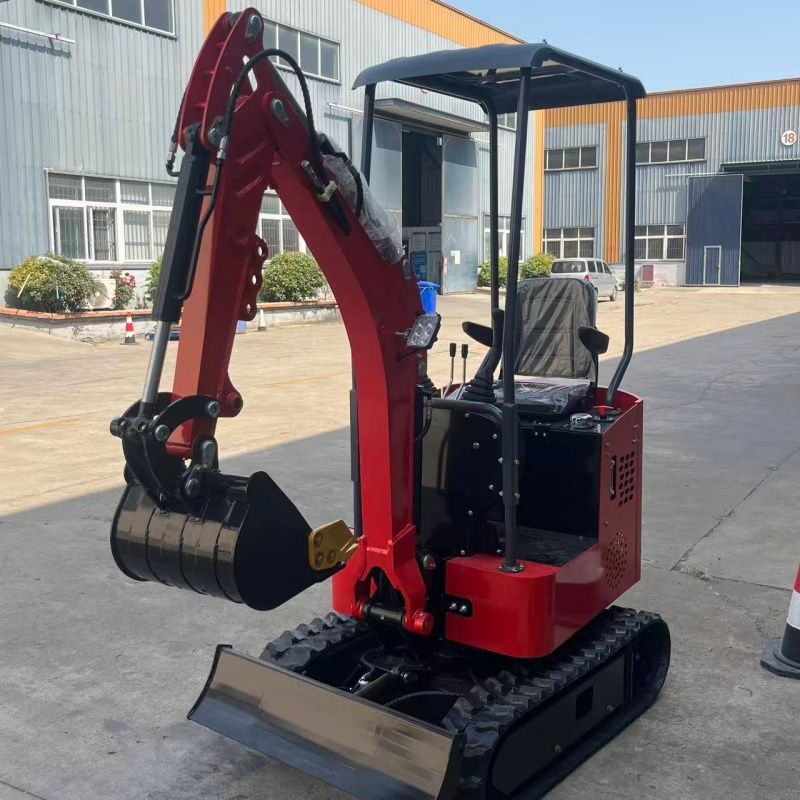

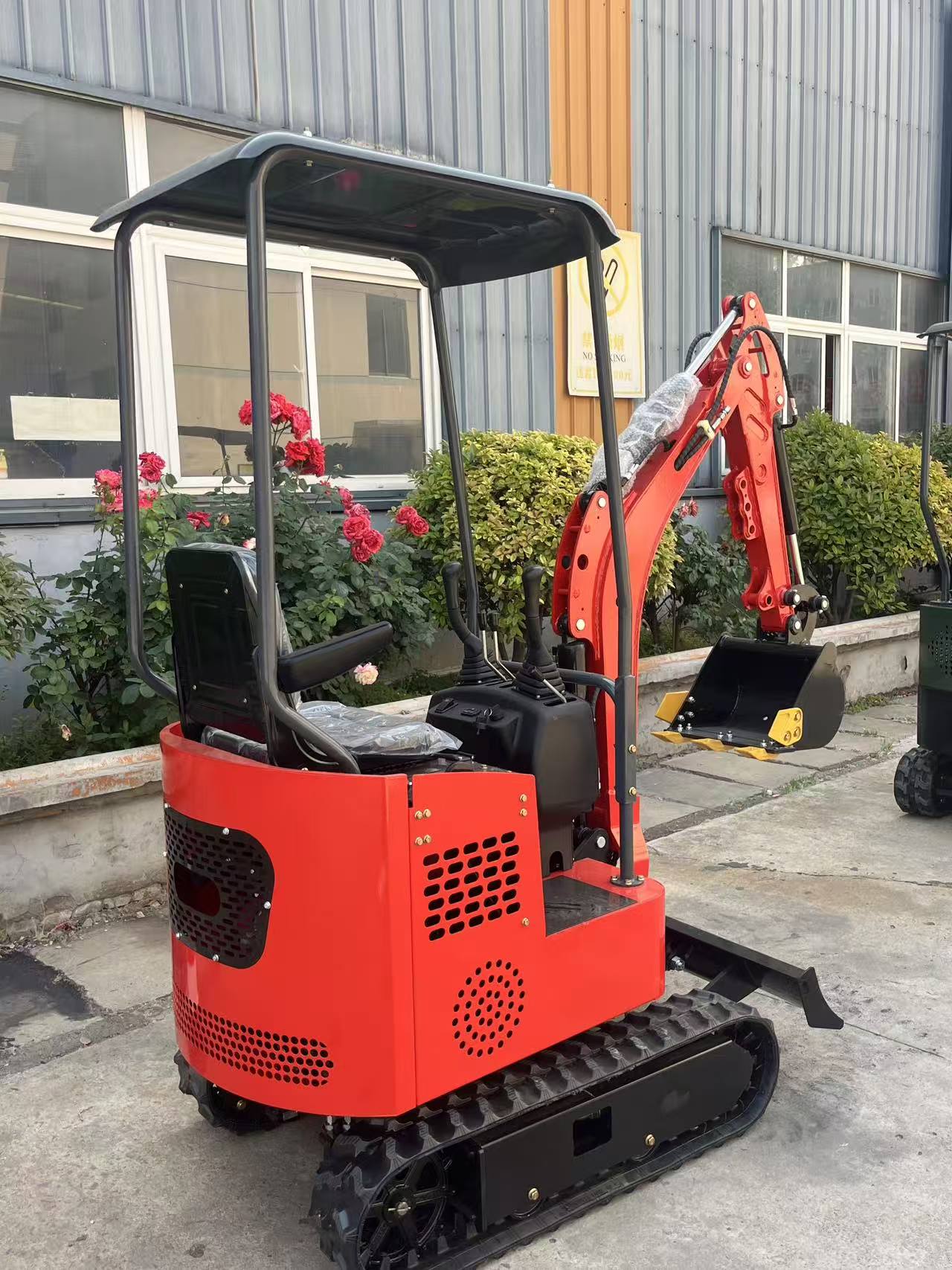

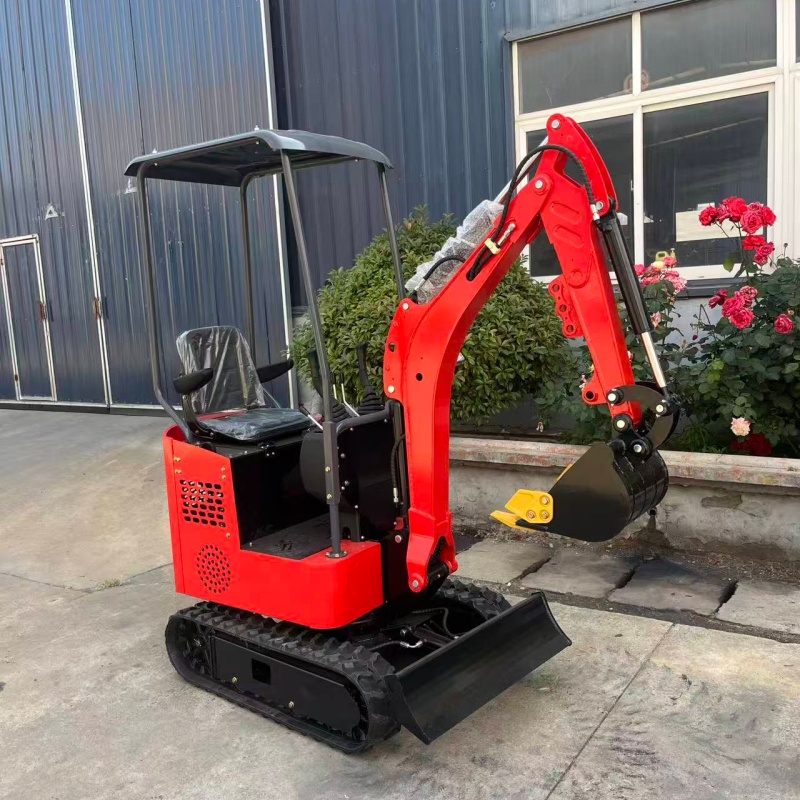

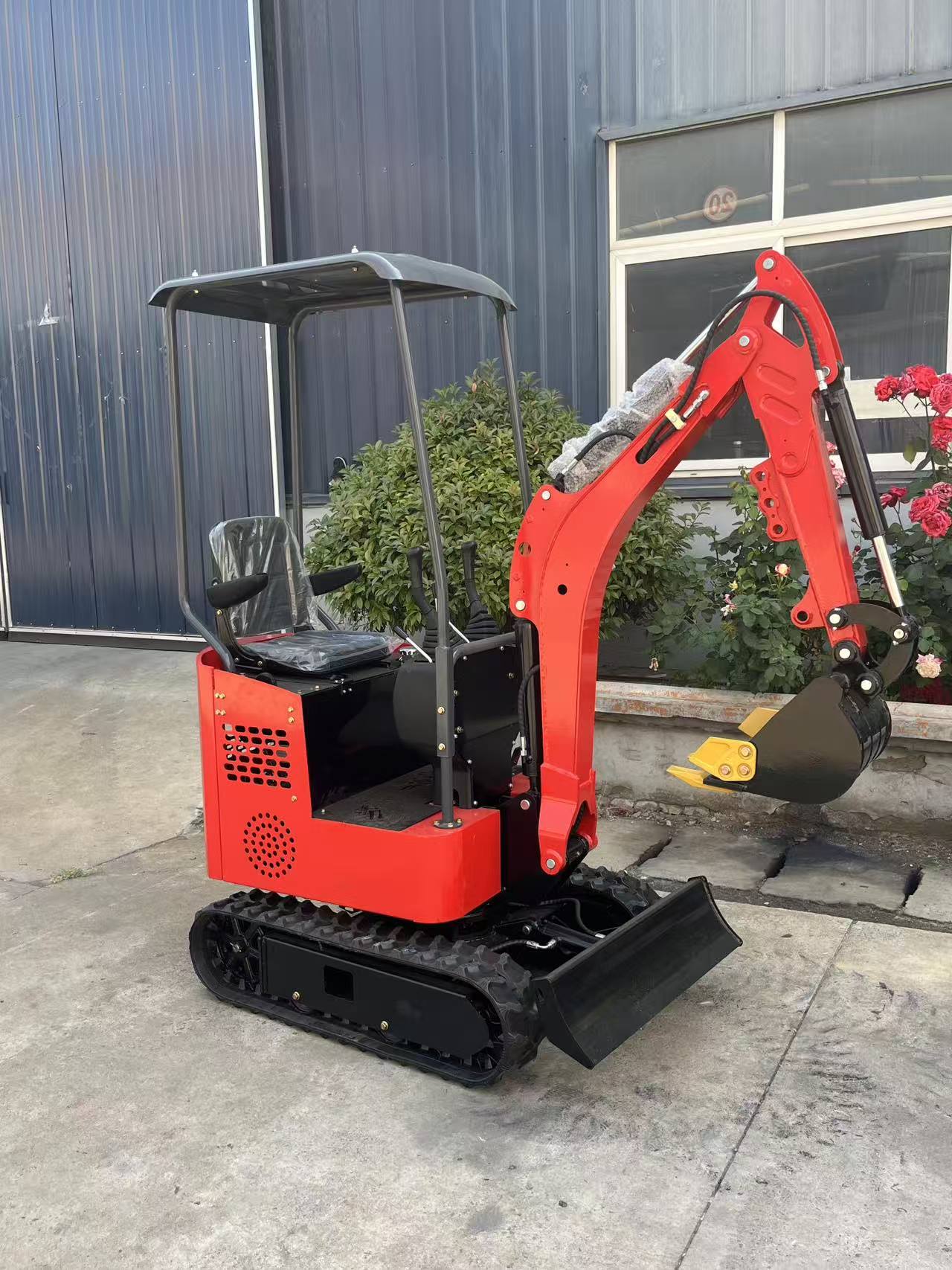

The ZL-12 is a compact 0.7 ton mini excavator designed for landscaping, farms, trenching, drainage, utility work and small construction projects. With a maximum digging depth of 1980 mm, a 3100 mm digging radius and a compact 925 mm chassis width, it combines practical excavation capability with maneuverability for limited-access job sites.
The ZL-12 is a compact crawler mini excavator developed for routine excavation and maintenance work where machine maneuverability and practical working range are both important.

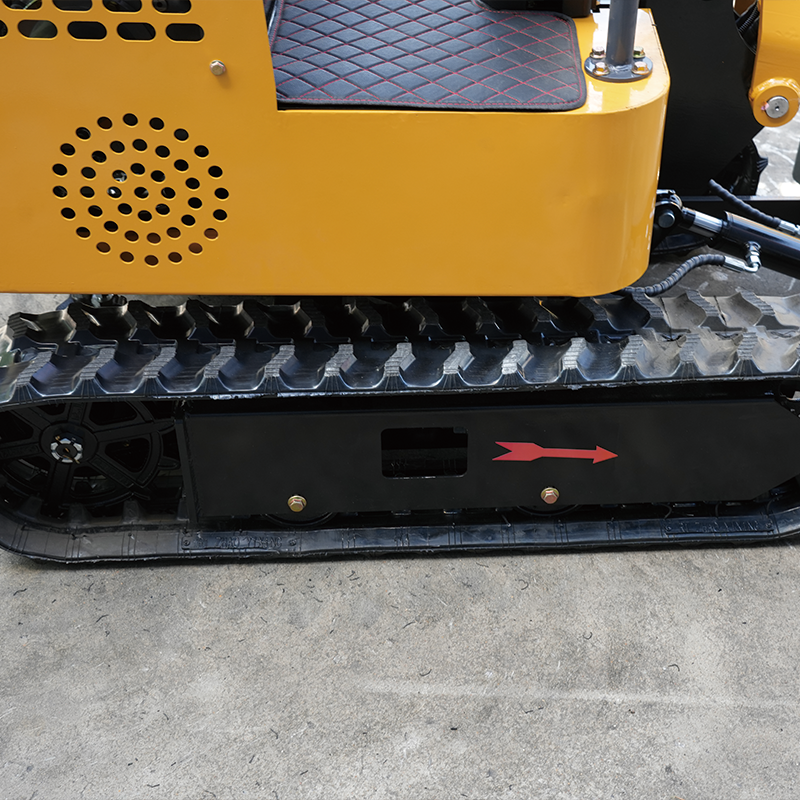

Its crawler undercarriage, compact upper structure and standard excavation system provide a practical platform for regular small-site digging without moving into the size and transport requirements of larger excavators.
Optional side-swing, cab and chassis configurations allow the machine to be adapted to different operating environments and project requirements.
Provides useful vertical working range for excavation, loading and material handling on compact job sites.
Allows excavated soil and loose material to be discharged into nearby piles, carts and other working areas.
Provides additional capability for trench walls and excavation tasks requiring a more vertical digging profile.
A compact turning radius helps improve positioning and maneuverability when working in restricted spaces.
Provides practical digging force for routine soil excavation, trenching and small-site construction work.
The standard bucket capacity is suited to routine digging, trench preparation and light material handling tasks.
The ZL-12 can handle a range of routine excavation and site-maintenance tasks where a compact crawler machine can improve efficiency and reduce manual digging.
Suitable for preparing planting pits for trees, shrubs and agricultural or landscaping projects.
Can assist with digging, cleaning and reshaping small irrigation channels around farms and properties.
Practical for underground trenches used for water pipes, electrical cables and other small utility installations.
Suitable for digging drainage channels and improving water management around gardens, farms and small construction sites.
Can assist with light foundation digging and ground preparation for small structures and site improvements.
Useful for soil removal, land preparation and routine excavation around residential, agricultural and commercial properties.
| Model | ZL-12 |
|---|---|
| Operating Weight | 720 kg |

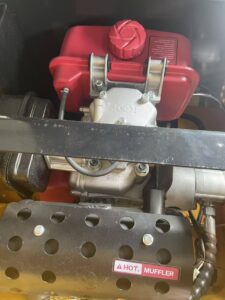

| Engine Type | XIPU 192 |
| Engine Power | 7.6 kW / 3300 rpm |
| Bucket Capacity | 0.025 m³ |
| Max. Bucket Digging Force | 8 kN |
| Max. Digging Height | 2820 mm |
|---|---|
| Max. Dumping Height | 1900 mm |
| Max. Digging Depth | 1980 mm |
| Max. Vertical Digging Depth | 1640 mm |
| Max. Digging Radius | 3100 mm |
| Minimum Turning Radius | 1145 mm |
| Tail / Track-End Turning Dimension | 678 mm |
| Transport Length | 2200 mm |
|---|---|
| Total Length | 1960 mm |
| Total Width | 900 mm |
| Total Height | 2200 mm |
| Chassis Width | 925 mm |
| Turntable Width | 805 mm |
| Track Width | 180 mm |
| Track Gauge | 740 mm |
| Wooden Crate Length | 2800 mm |
Optional equipment and configurations are available according to working conditions and project requirements. Please confirm compatibility and availability before ordering.
Each ZL-12 is assembled and inspected before shipment. Inspection includes engine operation, hydraulic functions, travel performance, digging movements, control functions and overall machine condition.
Pre-shipment checks help verify that major functions are operating correctly before the machine leaves the factory.
Warranty terms are provided according to the final machine configuration and order conditions.
Replacement and maintenance parts can be supplied for routine service and repair requirements.
Operating, maintenance and troubleshooting guidance can be provided when required.
Remote technical support can help identify common operating and maintenance issues.
