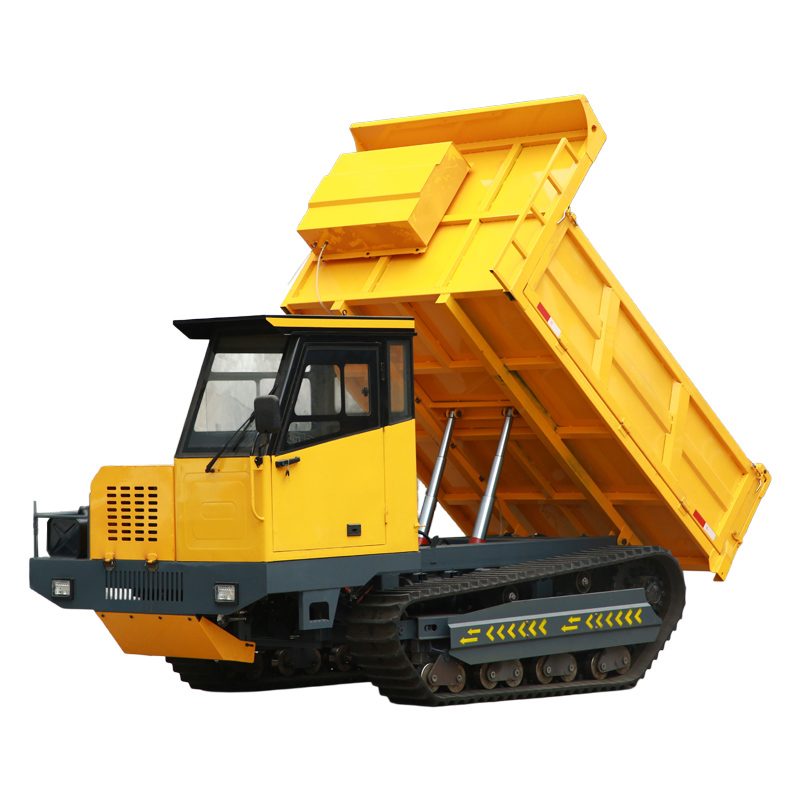

The 10-Ton Tracked Transporter is a heavy-duty crawler material carrier designed for large-volume transport across construction sites, forestry areas, earthwork projects and uneven outdoor terrain. Its 10 T load capacity, 4105 turbocharged diesel engine, enclosed operator cab and hydraulic self-unloading cargo box make it suitable for moving soil, aggregate, construction materials and other heavy cargo in demanding working environments.
The 10-Ton Tracked Transporter is a heavy-duty crawler material carrier developed for large-volume transport across construction, forestry, earthwork and other demanding outdoor working environments.
Its wide engineering-rubber-track undercarriage, enclosed operator cab and large hydraulic tipping cargo box provide a practical transport solution for job sites where high carrying capacity and crawler mobility are required.
The machine combines a 4105 turbocharged diesel engine, high/low range transmission, hydraulic self-unloading system and enclosed cab to support routine transport of soil, aggregate, tools, construction materials and other suitable heavy cargo.
The supplied technical data lists a 4105 turbocharged diesel engine for heavy-load transport and climbing applications.
The enclosed cab provides a dedicated operating environment with a practical control layout and seated driving position.
The supplied specification lists five forward gears and one reverse gear with high- and low-speed ranges.

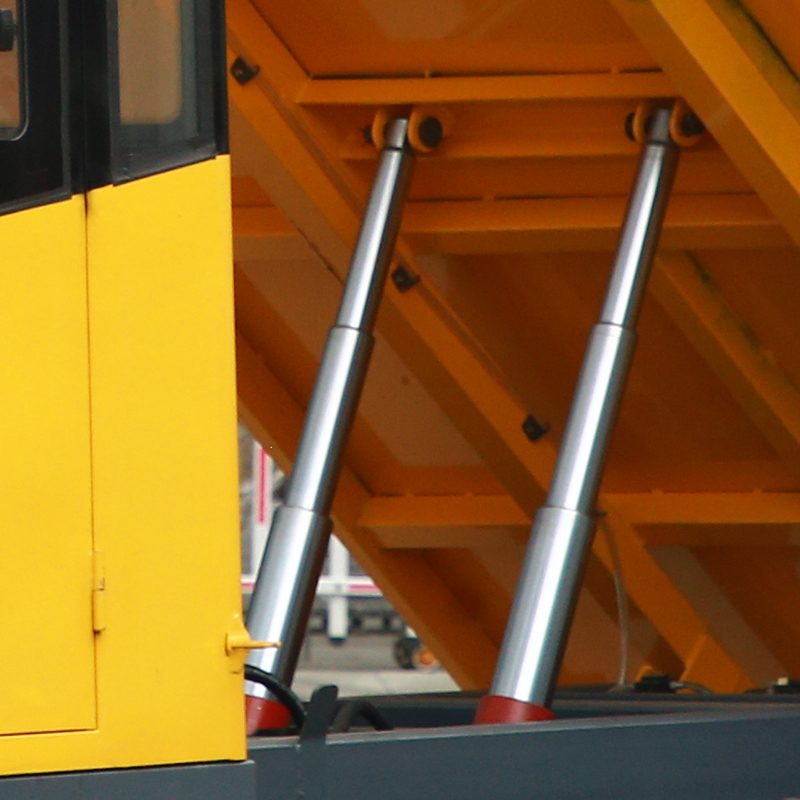

The supplied product images show dual three-stage telescopic hydraulic cylinders for cargo-box lifting and unloading.

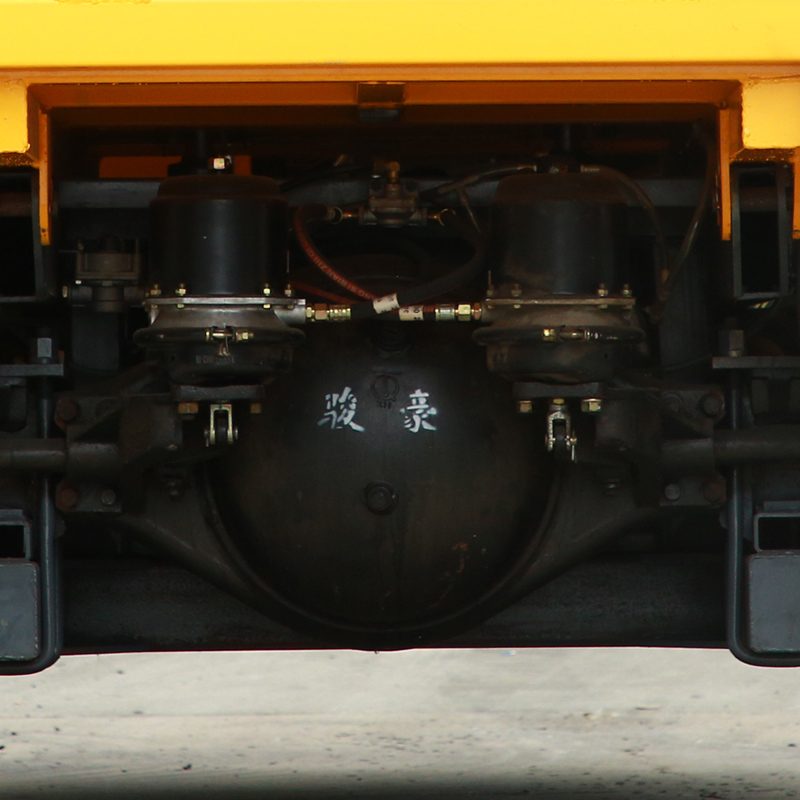

The drivetrain is configured for heavy-load transport using the listed Wanliyang 545-145 gearbox.

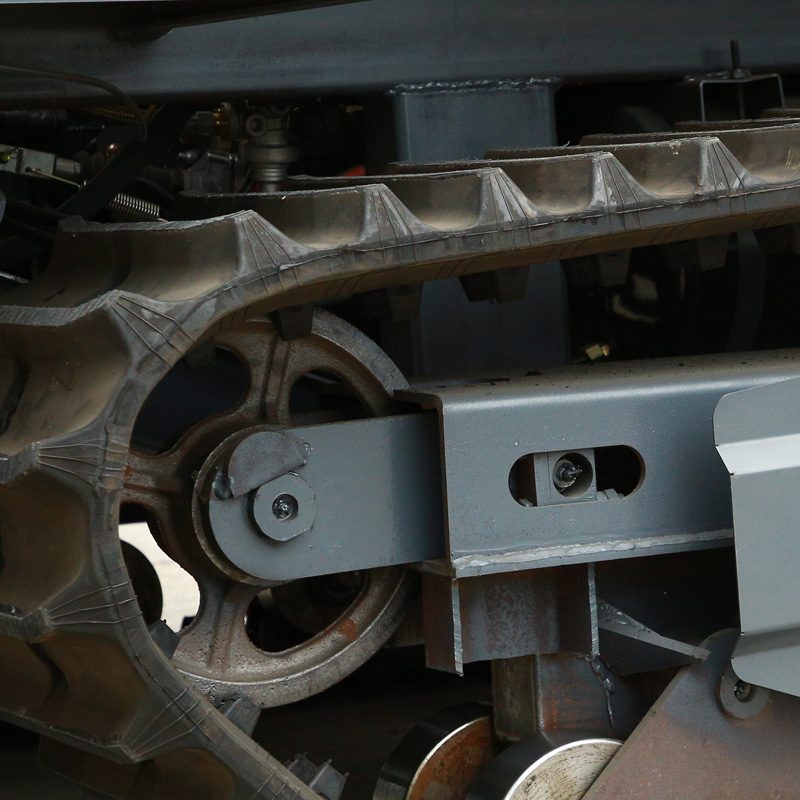

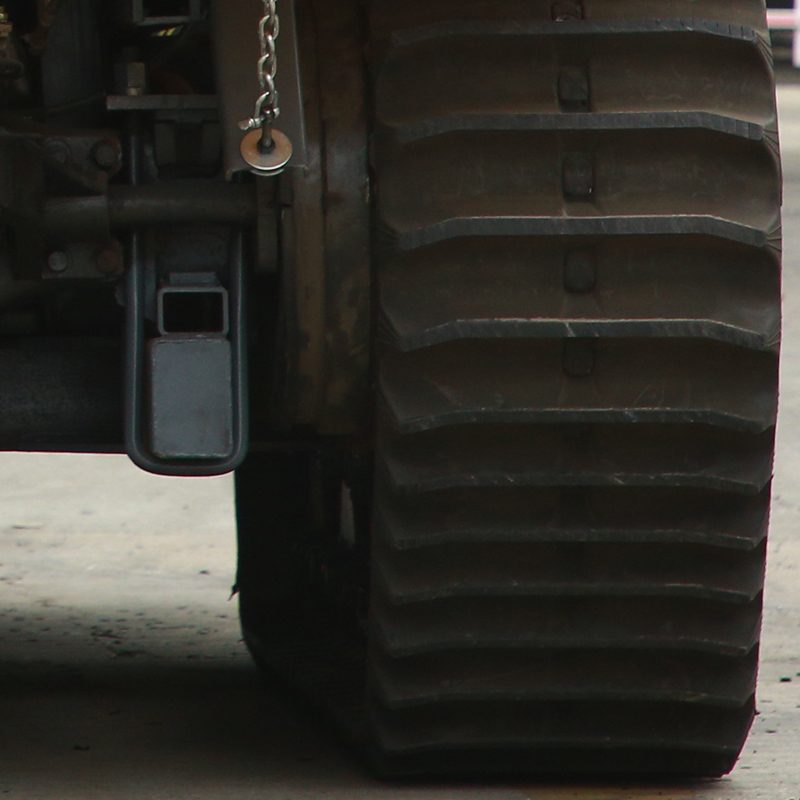

Engineering rubber tracks provide crawler mobility across suitable uneven and difficult ground conditions.
The 10 T load capacity, large cargo box and crawler chassis make this tracked transporter suitable for heavy material handling in construction, forestry, earthwork and mountain working environments.
Suitable for transporting soil, aggregate, tools and construction materials across large or difficult-access job sites.
Can assist with transporting equipment, supplies and suitable materials across forestry working areas and uneven terrain.
Suitable for moving bulk materials during appropriate earthmoving and infrastructure-related working conditions.
The crawler platform can support material movement through appropriate mountain roads and uneven working terrain.
Can transport heavy agricultural supplies, feed, tools and other materials across suitable large outdoor working areas.
The 10 T load capacity and large cargo box support routine movement of heavy bulk materials across suitable job sites.
| Product Name | 10-Ton Tracked Transporter |
|---|---|
| Load Capacity | 10 T |
| Body Size | 4.4 × 2.05 × 2.35 m |
| Chassis Width | 205 cm |
| Uphill Angle | ≤25° |
| Starting Method | Electric Start |
| Cargo Box Dimensions | 2.8 × 2.0 × 0.7 m |
|---|---|
| Cargo Box Height | 105 cm |
| Hydraulic Self-Unloading | Yes |
| Hydraulic Lifting System | Dual 3-Stage Telescopic Cylinders |
| Crane Installation | Available |
| Engine | 4105 Turbocharged Diesel Engine |
|---|---|
| Gearbox | Wanliyang 545-145 |
| Transmission | 5 Forward + 1 Reverse |
| Speed Range | High / Low |
| Track Size | 400 × 90 × 70 |
|---|---|
| Track Type | Engineering Rubber Tracks |
The 10-Ton Tracked Transporter combines a wide crawler chassis, enclosed operator cab, large cargo box, turbocharged diesel engine, hydraulic tipping system and high/low range transmission for demanding heavy-material transport applications.
The supplied product information also indicates support for crane installation. Final equipment and optional configuration requirements should be confirmed according to the intended application and working environment.
The machine integrates a heavy-duty crawler chassis, enclosed cab, large cargo box, turbocharged diesel engine, transmission and hydraulic unloading components into a large material transport platform.
Before shipment, key operating functions should be checked, including engine starting, forward and reverse travel, high- and low-range transmission operation, steering response, track movement, hydraulic unloading and overall machine condition.
Warranty terms are provided according to the final machine configuration and order conditions.
Replacement and maintenance parts can be supplied according to the selected machine configuration and service requirements.
Operating, maintenance and troubleshooting guidance can be provided when required.
Machine and optional equipment configurations can be discussed according to transportation requirements and working conditions.
Send us your requirements and we’ll provide pricing, product specifications and shipping information.
