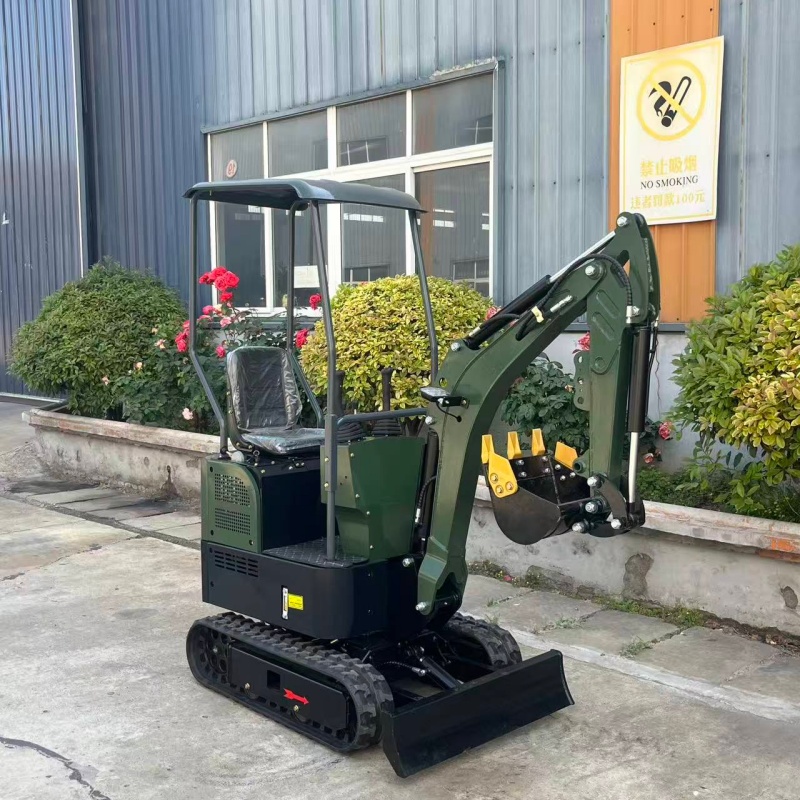

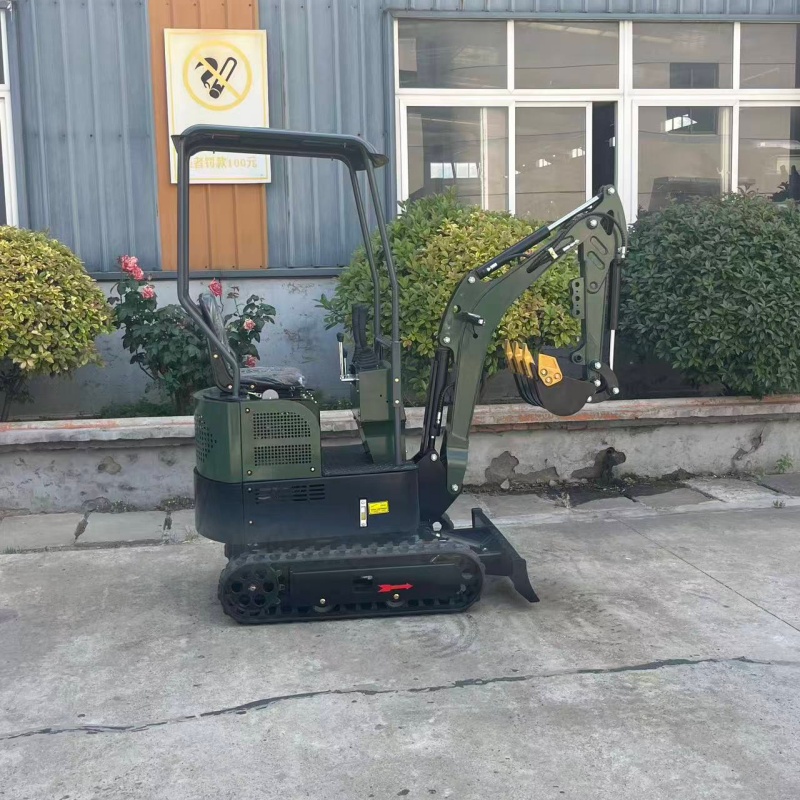

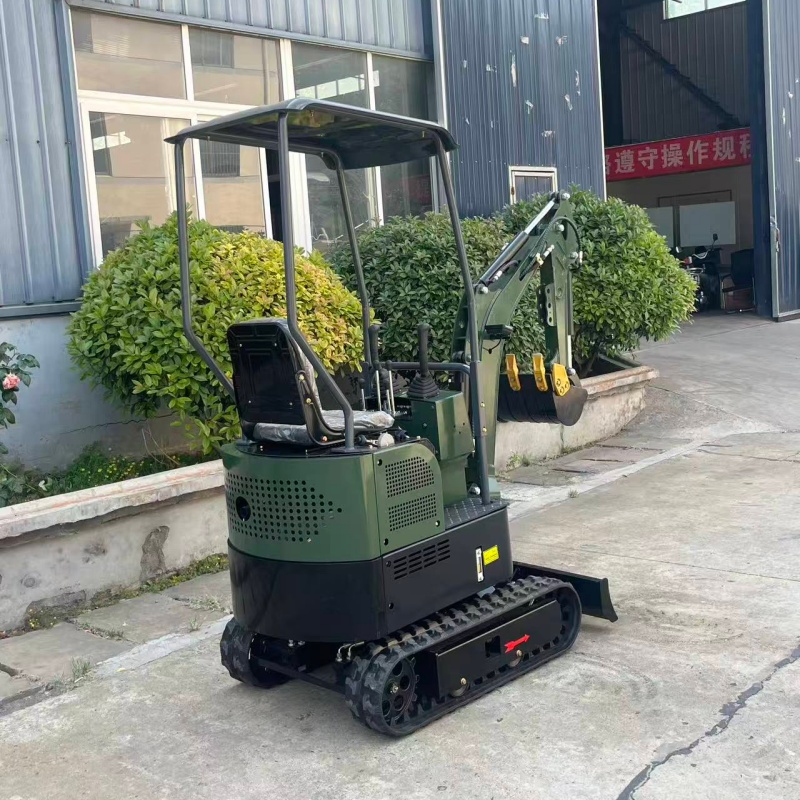

The ZL-10 is a compact 0.7 ton mini excavator designed for landscaping, farms, trenching, utility work and other small construction applications. With a 925 mm compact width, 1700 mm maximum digging depth and 2900 mm digging radius, it provides greater working capability while remaining compact enough for narrow and limited-access job sites.

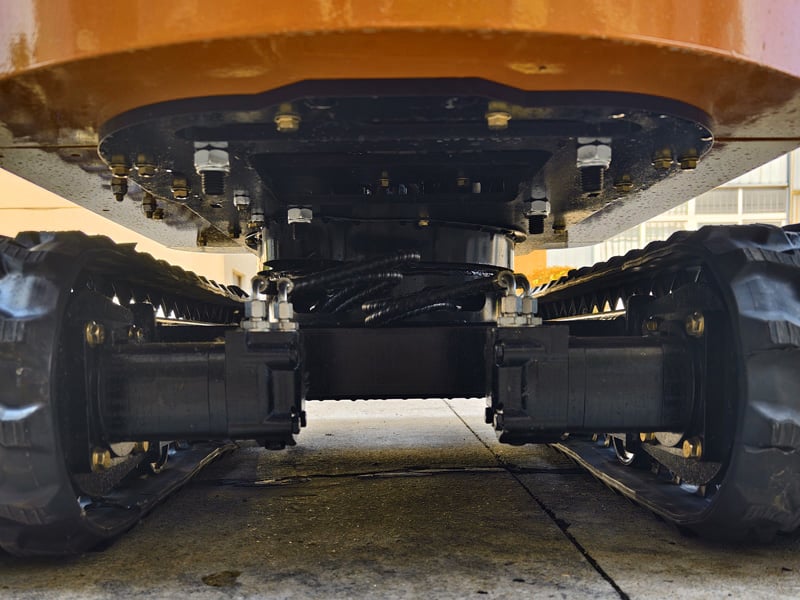

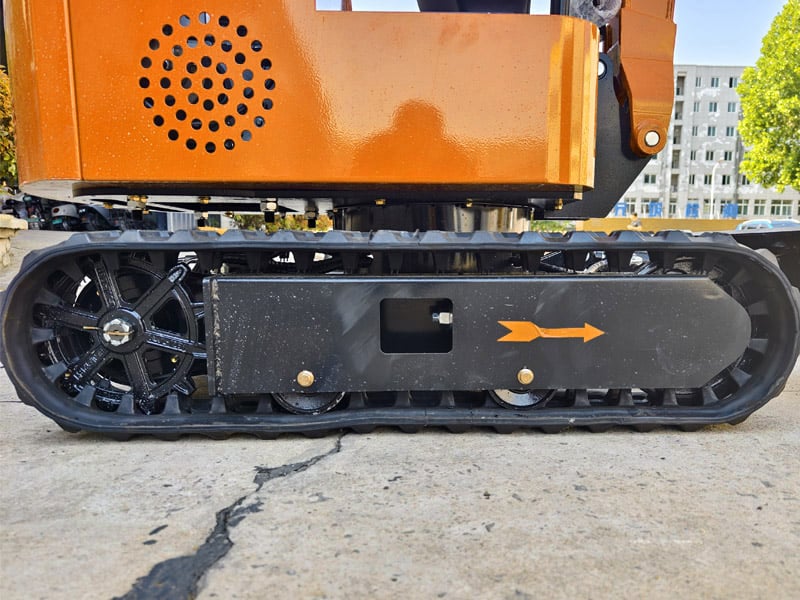

The ZL-10 is a compact crawler mini excavator developed for routine light excavation and maintenance work. Its crawler undercarriage and compact upper structure provide stable machine movement and practical maneuverability on small job sites.
The machine combines a standard excavation bucket, practical working range and configurable equipment options, providing a straightforward compact excavator solution for buyers who require more working capability than a lightweight micro excavator.
Its simple machine layout and compact construction make the ZL-10 suitable for buyers who need an easy-to-position excavator for regular small-scale digging and site maintenance tasks.
Provides useful vertical working range for digging, loading and material handling on compact job sites.
Allows excavated soil and loose materials to be discharged into small piles, carts and nearby working areas.
Supports more vertical excavation for trench walls and applications requiring controlled digging geometry.
The compact turning radius helps improve machine positioning and maneuverability in restricted working areas.

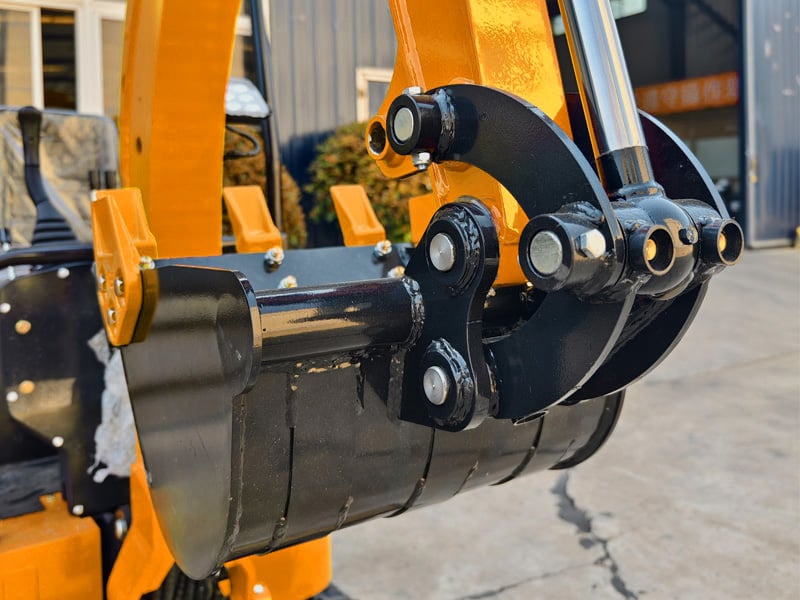

The standard excavation bucket is suitable for general-purpose digging across agricultural and small construction applications.
Provides practical material capacity for routine trenching, soil excavation and light material handling work.
The ZL-10 can be used for a range of routine small-scale digging and maintenance tasks where a compact crawler excavator can reduce manual work and improve site efficiency.
Suitable for digging planting pits for trees, shrubs and other landscaping or agricultural projects.
Can assist with digging, cleaning and reshaping small irrigation channels around farms and properties.
Practical for small underground trenches used for water pipes, electrical cables and utility installation.
Useful for removing soil, preparing planting areas and carrying out small garden renovation projects.
Can assist with light excavation and ground preparation for small foundations and structural work.
Suitable for routine excavation, drainage, land preparation and maintenance around residential, farm and commercial properties.
| Model | ZL-10 |
|---|---|
| Operating Weight | 720 kg |

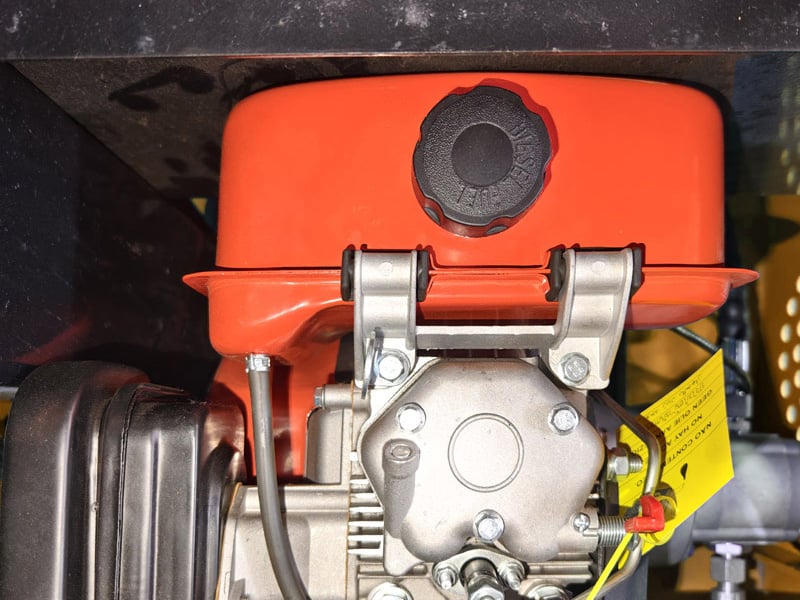

| Standard Engine | H-POWER HP192F |
| Engine Power | 8 kW / 3600 rpm |
| Standard Bucket Width | 400 mm |
| Bucket Capacity | 0.03 m³ |
| Max. Digging Height | 2500 mm |
|---|---|
| Max. Dumping Height | 1700 mm |
| Max. Digging Depth | 1700 mm |
| Max. Vertical Digging Depth | 1200 mm |
| Max. Digging Radius | 2900 mm |
| Minimum Turning Radius | 1450 mm |
| Transport Length | 2200 mm |
|---|---|
| Overall Width | 925 mm |
| Overall Height | 2000 / 2175 mm |
| Turntable Width | 805 mm |
| Chassis Width | 925 mm |
| Track Width | 180 mm |
| Track Gauge | 906 mm |
| Platform Ground Clearance | 370 mm |
| Minimum Ground Clearance | 127 mm |
| Wooden Crate Length | 2800 mm |
Optional equipment and configurations are available according to application requirements and destination market. Please confirm final compatibility and availability before ordering.
Each ZL-10 is assembled and inspected before shipment. Key inspection points include engine operation, hydraulic functions, travel system, digging movements, control functions and overall machine condition.
Pre-shipment inspection helps verify that major machine functions are operating correctly before delivery to the customer.
Warranty terms are provided according to the final machine configuration and order conditions.
Replacement and maintenance parts can be supplied for routine service and repair requirements.
Operating, maintenance and troubleshooting guidance can be provided when required.
Remote technical support can help identify common operating and maintenance issues.
