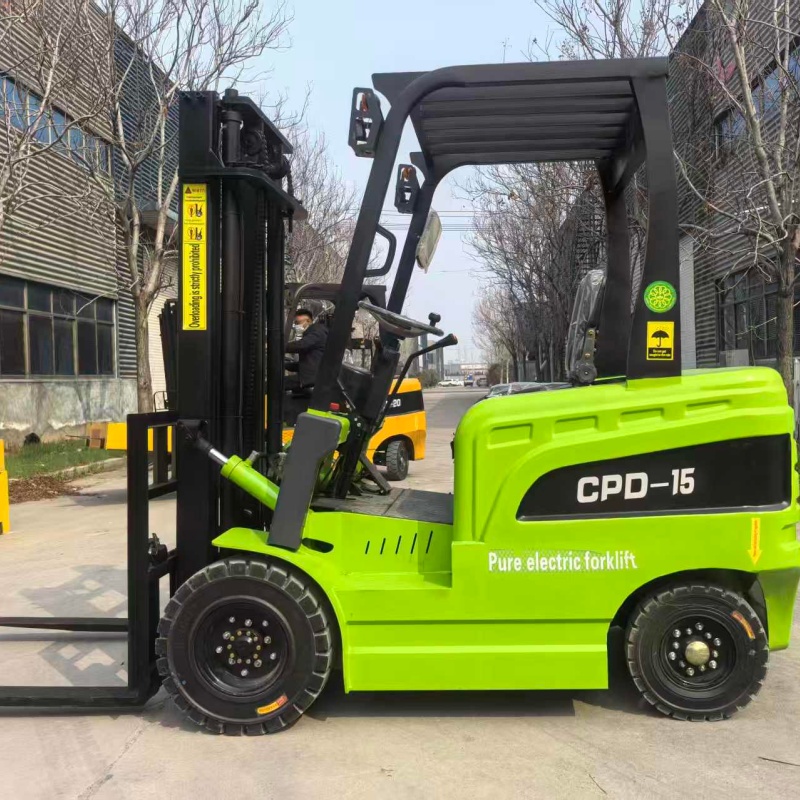

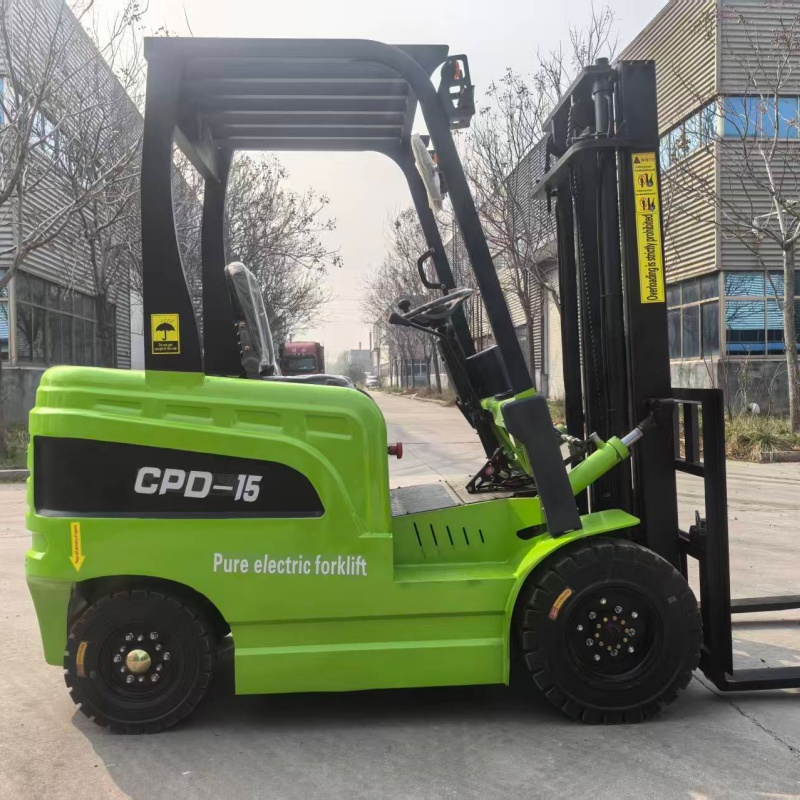

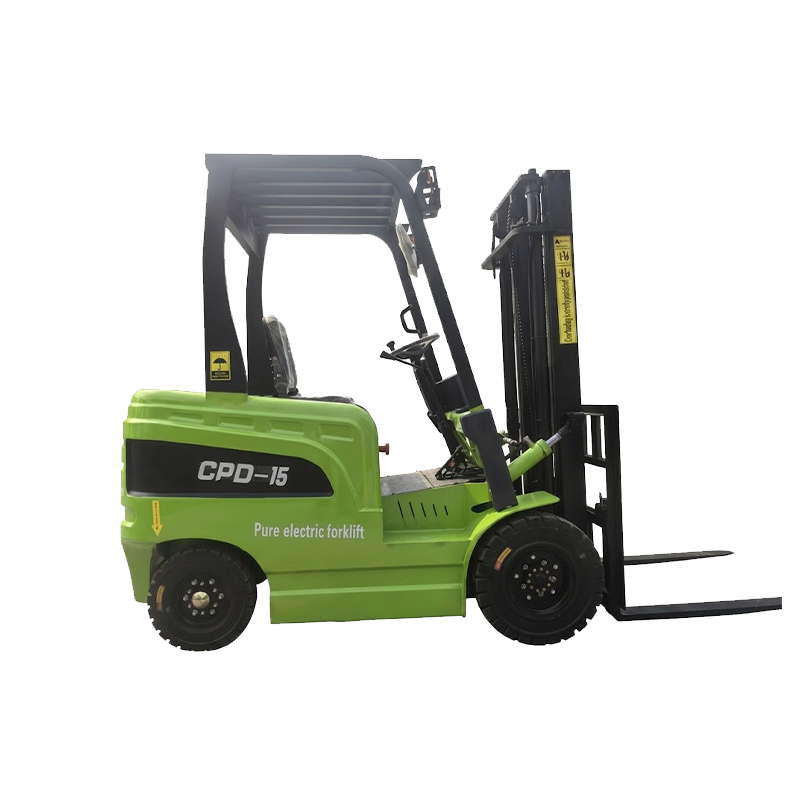

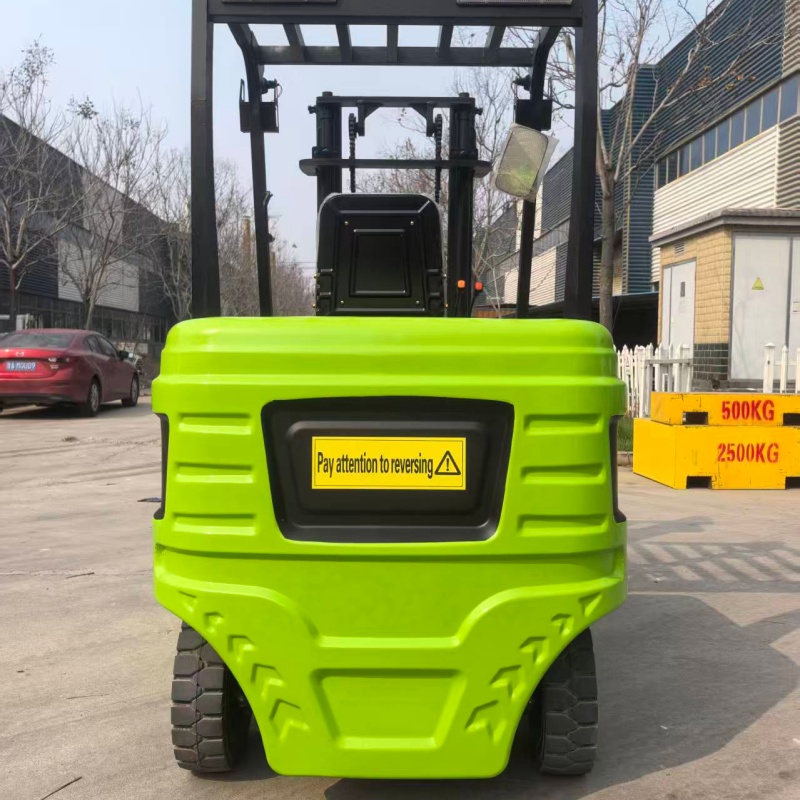

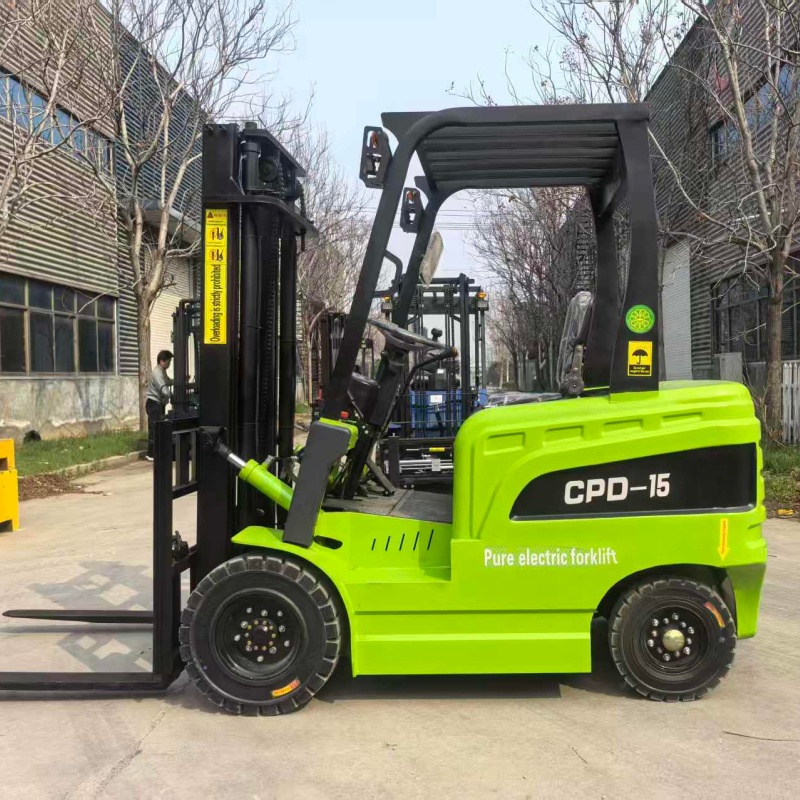

The 1.5 Ton Electric Forklift is a compact battery-powered material handling solution designed for warehouses, factories, workshops and logistics operations. With a rated lifting capacity of 1.5 tons, lifting heights from 3 to 6 m and a compact 2185 mm turning radius, it provides practical lifting performance while maintaining the low-noise and low-maintenance advantages of electric operation.
The 1.5 Ton Electric Forklift is designed for pallet handling, stacking and short-distance material transport in warehouses, factories, workshops and logistics facilities. Its 1500 kg rated lifting capacity provides increased handling capability compared with smaller compact forklifts while maintaining practical dimensions for everyday industrial operation.
Battery-powered operation helps reduce working noise and routine engine-related servicing. With available lifting heights from 3 to 6 m and a minimum turning radius of 2185 mm, the forklift can be configured for different stacking heights and material handling environments.
Provides a 1.5 ton rated lifting capacity for pallets, materials and general industrial handling applications.
Multiple mast configurations support different stacking heights and warehouse storage requirements.
Compact maneuverability helps the forklift operate effectively in warehouses, workshops and restricted working areas.
Electric operation provides lower working noise and reduces routine maintenance associated with conventional engines.
The forklift has an overall width of 1200 mm and a length of 3370 mm with forks installed. A minimum turning radius of 2185 mm helps provide practical maneuverability for pallet movement, stacking and loading operations.
Compact machine width supports operation in suitable warehouse aisles, workshops and industrial handling areas.
Overall machine length with the forks installed is approximately 3370 mm.
Provides suitable ground clearance for normal warehouse, workshop and industrial operating surfaces.
Provides a reference for planning aisle width and right-angle pallet handling operations.
The forklift uses a 60 V / 70 Ah lead-acid battery system together with a 3 kW drive motor and a 3 kW oil pump motor. This electric configuration provides power for both travel and hydraulic lifting while supporting quieter operation in industrial and material handling environments.
Battery power supports electric operation for routine warehouse and factory material handling tasks.
The electric drive motor provides power for forklift travel and positioning during handling operations.
The oil pump motor supplies hydraulic power for lifting and material handling functions.
Electric drive reduces operating noise and eliminates routine engine-related servicing requirements.
The forklift is available with lifting height configurations ranging from 3 to 6 m. This allows the machine to support different pallet stacking, warehouse racking and material loading requirements.
Multiple lifting height options allow configuration according to storage rack and stacking requirements.
The specified load center distance is 400 mm for the rated lifting configuration.
Provides the specified adjustment range for the lifting mechanism.
The specified lowered mast height helps evaluate access through doors and indoor working areas.
| Power Type | Battery |
|---|---|
| Rated Lifting Capacity | 1500 kg |
| Load Center Distance | 400 mm |
| Overall Length with Forks | 3370 mm |
| Overall Length without Forks | 2300 mm |
| Overall Width | 1200 mm |
| Mast Height, Lowered | 2100 mm |
| Overhead Guard Height | 2100 mm |
| Maximum Height During Operation | 3–6 m |
| Front Wheel Track | 840 mm |
| Rear Wheel Track | 741 mm |
| Minimum Ground Clearance | 150 mm |
| Maximum Lifting Height | 3–6 m |
| Lift Lever Adjustment Range | 1040 mm |
| Minimum Turning Radius | 2185 mm |
| Minimum Right-Angle Passage Width | 3850 mm |
| Front Tire Size | 650-10 |
| Rear Tire Size | 500-8 |
| Lead-Acid Battery Voltage / Capacity | 60 V / 70 Ah |
| Drive Motor Power | 3 kW |
| Oil Pump Motor Power | 3 kW |
The 1.5 Ton Electric Forklift is suitable for businesses requiring compact electric lifting equipment for pallet handling, stacking, loading and short-distance material transport.
Suitable for pallet movement, storage operations and everyday material handling inside warehouses.
Supports material transport between production, assembly, storage and loading areas.
Multiple lifting height configurations support different pallet stacking and storage rack requirements.
Suitable for loading, unloading and moving palletized materials over short distances.
Lifting height and machine configuration can be discussed according to your warehouse layout and material handling requirements.
Support is available for product communication, order coordination and international shipping arrangements.
Provide your required lifting capacity, lifting height and working environment so our team can help confirm a suitable configuration.
Send us your requirements and we’ll provide pricing, product specifications and shipping information.
